B22-253-M-36

B22-253-M-36

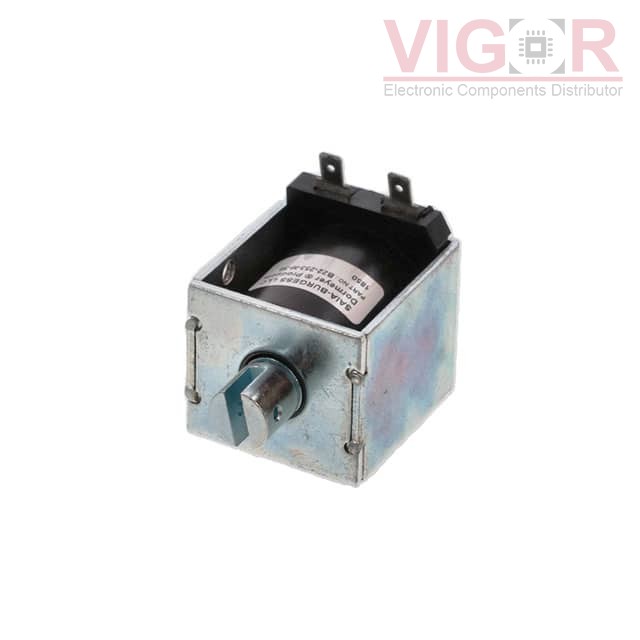

Image is for reference,
please contact us to get the real picture

Part No :

B22-253-M-36

Manufacturer
Saia (Division of Johnson Electric)
Description
OPEN FRAME SOLENOID B22 - 24 VDC
Catalog
Solenoids, Actuators
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
B22-253-M-36 PDF
Availability
194 pieces
Unit Price
$20.08000

Current price of B22-253-M-36 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B22-253-M-36 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Technology:Electromechanical
Type:Open Frame (Pull)
Duty Cycle:Continuous
Voltage - Rated:24VDC
Stroke Length:0.500" (12.70mm)
Power (Watts):9.9 W
DC Resistance (DCR):58.2Ohm
Bushing Thread:-
Mounting Type:Chassis Mount
Termination Style:Quick Connect - 0.187" (4.7mm)
Size / Dimension:1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm)
Diameter - Shaft:0.500" (12.70mm)
Shaft Detail:Clevis
