Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 17PY-Z444-99VS is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 17PY |
Package: | Bulk |
Part Status: | Active |
Type: | Hybrid, Dual Shaft |
Coil Type: | Unipolar |
Voltage - Rated: | 24VDC |
Current Rating (Amps): | 1.2 A |
Steps per Revolution: | 400 |
Step Angle: | 0.9° |
Accuracy: | ±5% |
Torque - Holding (oz-in / mNm): | 46.74 / 330 |
Size / Dimension: | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
NEMA Frame Size: | 17 |
Diameter - Shaft: | 0.197" (5.00mm) |
Length - Shaft and Bearing: | 0.787" (20.00mm) |
Mounting Hole Spacing: | 1.220" (31.00mm) |
Termination Style: | Wire Leads with Connector |
Operating Temperature: | -10°C ~ 50°C |
Coil Resistance: | 3.3 Ohms |
Features: | Flatted Shaft |

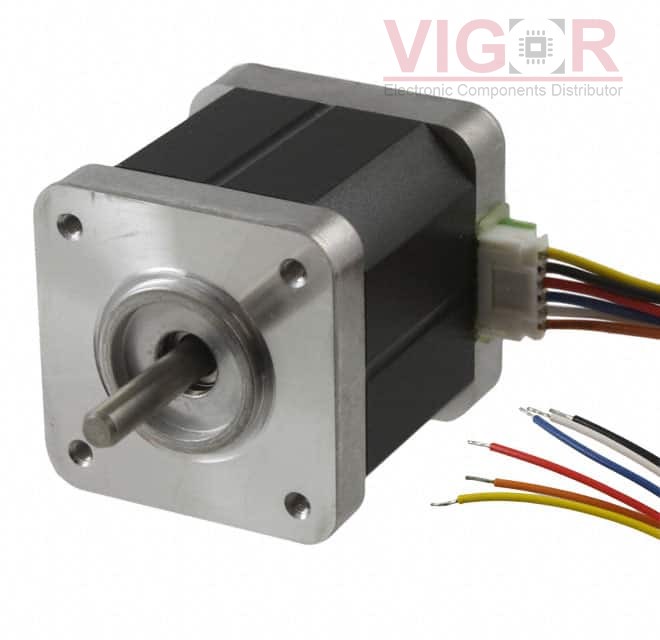

STEP MOTOR HYBRID DUAL SHAFT 24V
