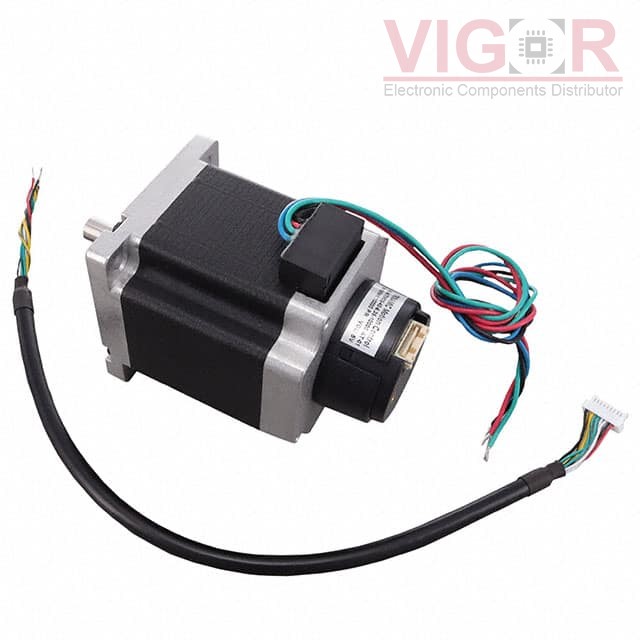

QSH6018-65-28-210-10000-AT

Image is for reference,
please contact us to get the real picture

Part No :: QSH6018-65-28-210-10000-AT

Manufacturer: TRINAMIC Motion Control GmbH

Description: STEP MOTOR HYBRID NEMA24 ENC 100

Catalog: Stepper Motors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: QSH6018-65-28-210-10000-AT PDF

Availability: 2 pieces

Unit Price: ~~$228.29000~~

Current price of QSH6018-65-28-210-10000-AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QSH6018-65-28-210-10000-AT Specifications

Type	Description
Series:	QMot QSH6018
Package:	Bulk
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	3.36VDC
Current Rating (Amps):	2.8 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	297.4 / 2100
Size / Dimension:	Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size:	24
Diameter - Shaft:	0.315" (8.00mm)
Length - Shaft and Bearing:	0.945" (24.00mm)
Mounting Hole Spacing:	1.856" (47.14mm)
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	1.2 Ohms
Features:	Flatted Shaft

Please confirm the specifications of the products when ordering.
