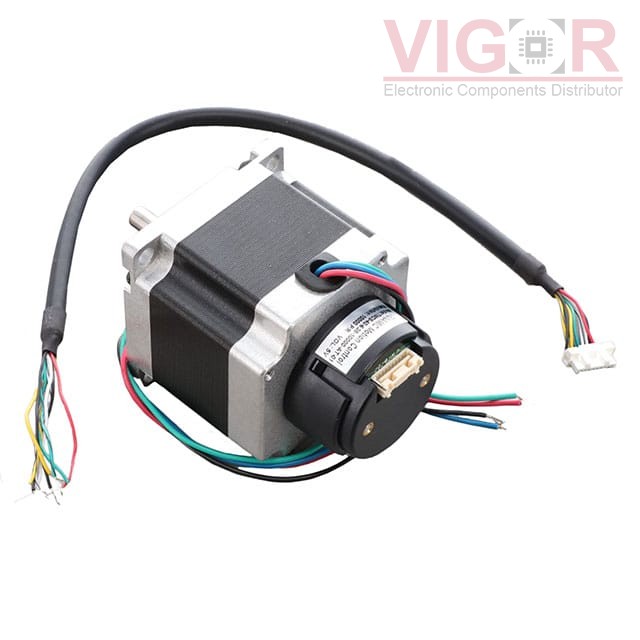

QSH5718-51-28-101-10000-AT

QSH5718-51-28-101-10000-AT

Image is for reference,
please contact us to get the real picture

Part No :

QSH5718-51-28-101-10000-AT

Manufacturer
TRINAMIC Motion Control GmbH
Description
STEP MOTOR HYBRID NEMA23 ENC 100
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
QSH5718-51-28-101-10000-AT PDF
Availability
11 pieces
Unit Price
$192.04000

Current price of QSH5718-51-28-101-10000-AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QSH5718-51-28-101-10000-AT Specifications
Type Description
Series:QMot QSH5718
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:2.3VDC
Current Rating (Amps):2.8 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):143.03 / 1010
Size / Dimension:Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size:23
Diameter - Shaft:0.250" (6.35mm)
Length - Shaft and Bearing:0.945" (24.00mm)
Mounting Hole Spacing:1.856" (47.14mm)
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 50°C
Coil Resistance:0.8 Ohms
Features:Flatted Shaft
