Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 23KM-K744B is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 23KM |
Package: | Bulk |
Part Status: | Active |
Type: | Hybrid |
Coil Type: | Bipolar |
Voltage - Rated: | 24VDC |
Current Rating (Amps): | 2 A |
Steps per Revolution: | 200 |
Step Angle: | 1.8° |
Accuracy: | - |
Torque - Holding (oz-in / mNm): | 169.96 / 1200 |
Size / Dimension: | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
NEMA Frame Size: | 23 |
Diameter - Shaft: | 0.250" (6.35mm) |
Length - Shaft and Bearing: | 0.813" (20.64mm) |
Mounting Hole Spacing: | 1.856" (47.14mm) |
Termination Style: | Connector |
Operating Temperature: | - |
Coil Resistance: | 2.3 Ohms |
Features: | Round Shaft |

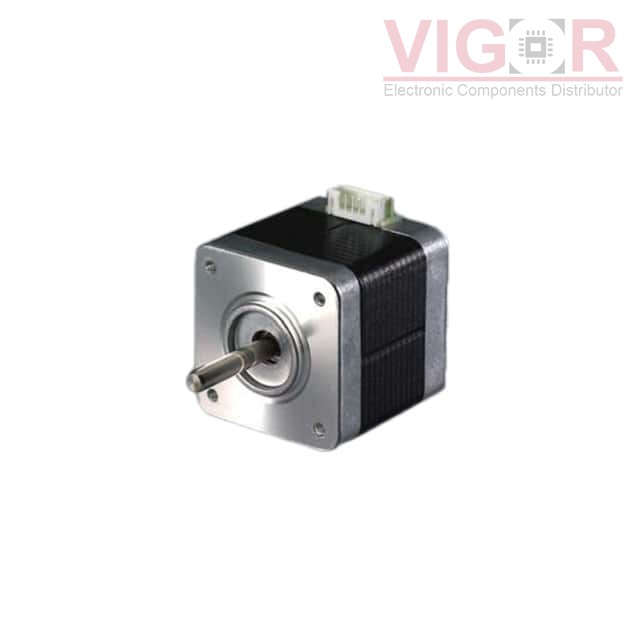

STEPPER MOTOR HYBRID BIPOLAR 24V
