QSH6018-56-28-165

QSH6018-56-28-165

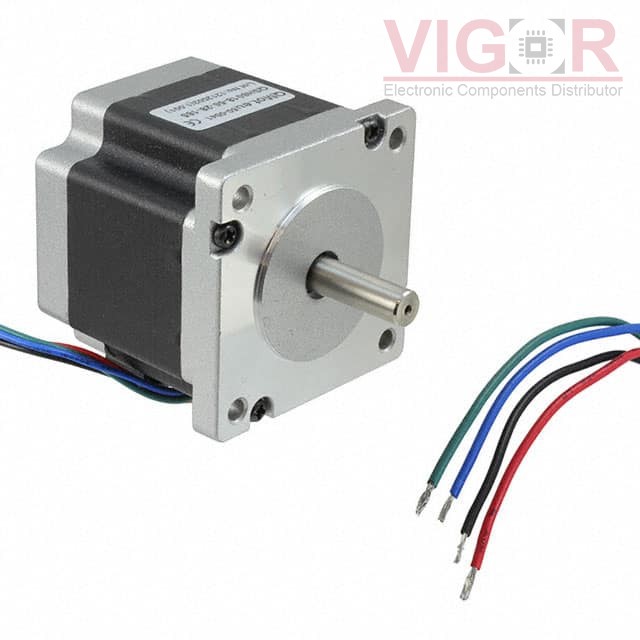

Image is for reference,
please contact us to get the real picture

Part No :

QSH6018-56-28-165

Manufacturer
TRINAMIC Motion Control GmbH
Description
STEP MOTOR HYBRID BIPOLAR 2.52V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
QSH6018-56-28-165 PDF
Availability
31 pieces
Unit Price
$74.51000

Current price of QSH6018-56-28-165 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QSH6018-56-28-165 Specifications
Type Description
Series:QMot QSH6018
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:2.52VDC
Current Rating (Amps):2.8 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):233.66 / 1650
Size / Dimension:Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size:24
Diameter - Shaft:0.315" (8.00mm)
Length - Shaft and Bearing:0.945" (24.00mm)
Mounting Hole Spacing:1.856" (47.14mm)
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 50°C
Coil Resistance:0.9 Ohms
Features:Flatted Shaft
