QSH6018-86-90-300-10000-AT

QSH6018-86-90-300-10000-AT

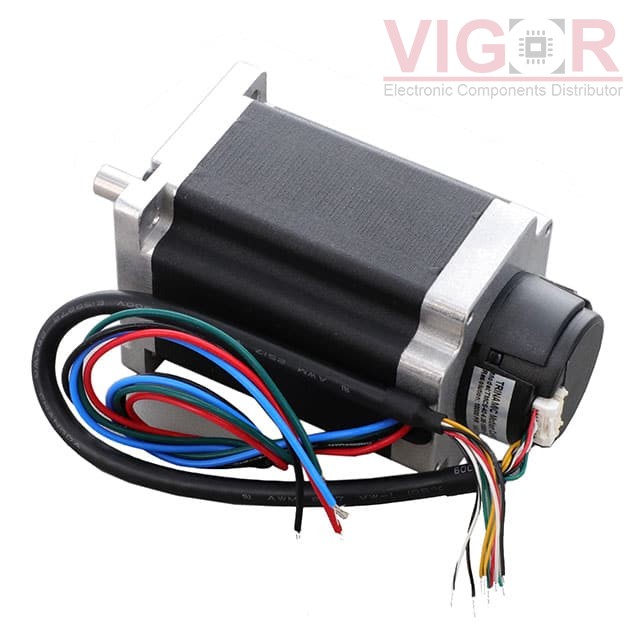

Image is for reference,
please contact us to get the real picture

Part No :

QSH6018-86-90-300-10000-AT

Manufacturer
TRINAMIC Motion Control GmbH
Description
STEP MOTOR HYBRID NEMA24 + ENC
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
QSH6018-86-90-300-10000-AT PDF
Availability
3 pieces
Unit Price
$245.69000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of QSH6018-86-90-300-10000-AT is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

QSH6018-86-90-300-10000-AT Specifications
Type Description
Series:QMot QSH6018
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:2.1VDC
Current Rating (Amps):9 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):424.93 / 3000
Size / Dimension:Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size:24
Diameter - Shaft:0.315" (8.00mm)
Length - Shaft and Bearing:0.945" (24.00mm)
Mounting Hole Spacing:1.856" (47.14mm)
Termination Style:Wire Leads
Operating Temperature:-
Coil Resistance:0.15 Ohms
Features:Flatted Shaft
