Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of NEMA17-23-01D-AMT112S is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | NEMA17-AMT112S |
Package: | Box |
Part Status: | Active |
Type: | - |
Coil Type: | Bipolar |
Voltage - Rated: | 24 ~ 48VDC |
Current Rating (Amps): | 2 A |
Steps per Revolution: | 200 |
Step Angle: | 1.8° |
Accuracy: | ±0.2% |
Torque - Holding (oz-in / mNm): | 110 / 776.77 |
Size / Dimension: | Square - 1.669" x 1.669" (42.40mm x 42.40mm) |
NEMA Frame Size: | 17 |
Diameter - Shaft: | 0.197" (5.00mm) |
Length - Shaft and Bearing: | 0.945" (24.00mm) |
Mounting Hole Spacing: | 1.220" (31.00mm) |
Termination Style: | Connector |
Operating Temperature: | -20°C ~ 50°C |
Coil Resistance: | 2 Ohms |
Features: | Integrated Encoder, Flatted Shaft |

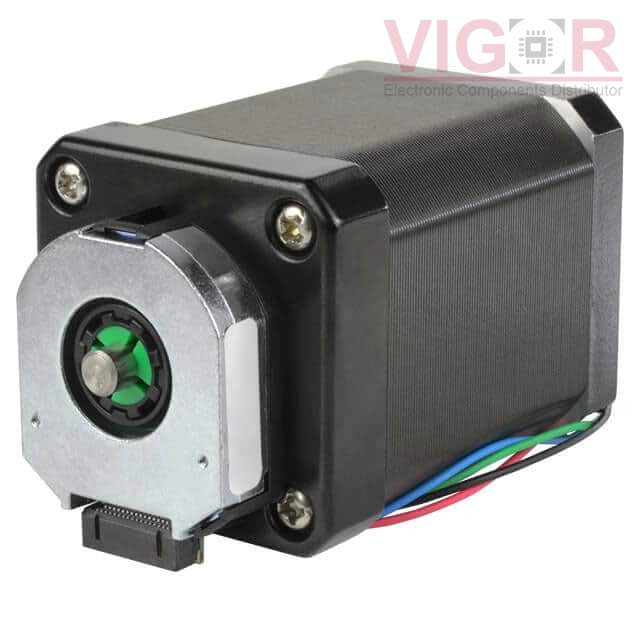

STEPPER MOTOR W/ INCREMENTAL ENC
