QSH2818-32-07-006

QSH2818-32-07-006

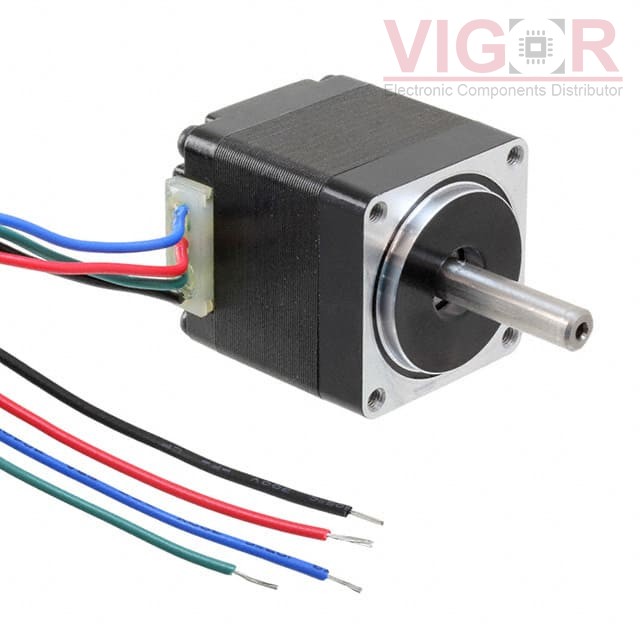

Image is for reference,
please contact us to get the real picture

Part No :

QSH2818-32-07-006

Manufacturer
TRINAMIC Motion Control GmbH
Description
STEP MOTOR HYBRID BIPOLAR 3.8V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
QSH2818-32-07-006 PDF
Availability
233 pieces
Unit Price
$37.90000

Current price of QSH2818-32-07-006 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QSH2818-32-07-006 Specifications
Type Description
Series:QMot QSH2818
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:3.8VDC
Current Rating (Amps):670 mA
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):8.49 / 60
Size / Dimension:Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size:11
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.787" (20.00mm)
Mounting Hole Spacing:0.905" (22.98mm)
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 50°C
Coil Resistance:5.6 Ohms
Features:Flatted Shaft
