WO-3709V-03

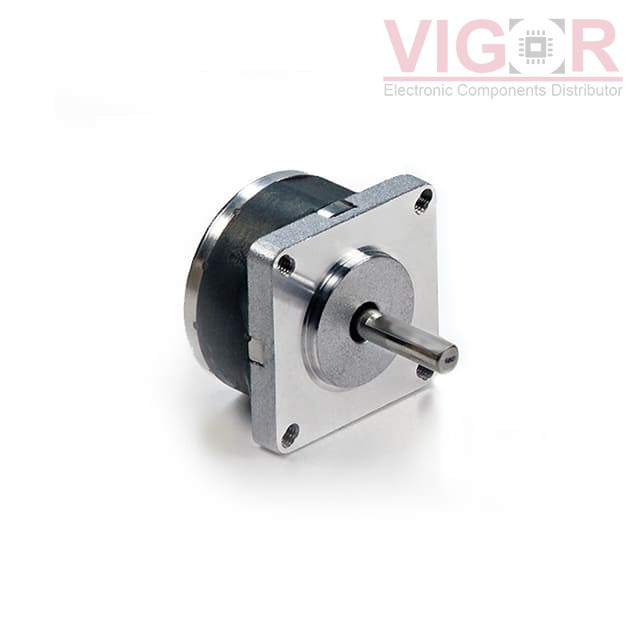

Image is for reference,
please contact us to get the real picture

Part No :

WO-3709V-03

Manufacturer
Lin Engineering
Description
STEPPER MOTOR
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
WO-3709V-03 PDF
Availability
0 pieces
Unit Price
$34.85000

Current price of WO-3709V-03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tray
Part Status:Active
Type:-
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):1.2 A
Steps per Revolution:400
Step Angle:0.9°
Accuracy:-
Torque - Holding (oz-in / mNm):16 / 113
Size / Dimension:Square - 1.440" L x 1.440" W (36.58mm x 36.58mm)
NEMA Frame Size:14
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.787" (20.00mm)
Mounting Hole Spacing:1.220" (31.00mm)
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 50°C
Coil Resistance:3 Ohms
Features:Round Shaft
