14PY-Z047U

14PY-Z047U

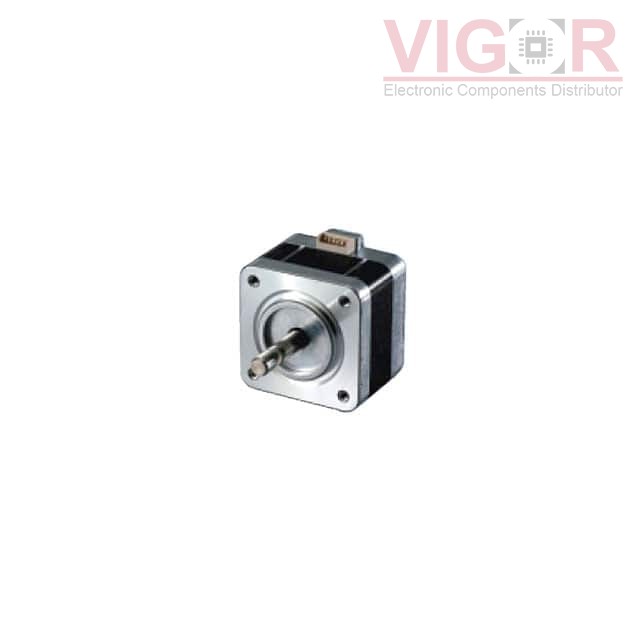

Image is for reference,
please contact us to get the real picture

Part No :

14PY-Z047U

Manufacturer
NMB Technologies Corp.
Description
STEP MOTOR HYBRID UNIPOLAR 24V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
14PY-Z047U PDF
Availability
0 pieces
Unit Price
$42.00000

Current price of 14PY-Z047U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

14PY-Z047U Specifications
Type Description
Series:14PY
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Unipolar
Voltage - Rated:24VDC
Current Rating (Amps):800 mA
Steps per Revolution:400
Step Angle:0.9°
Accuracy:-
Torque - Holding (oz-in / mNm):5.67 / 40
Size / Dimension:Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size:14
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.787" (20.00mm)
Mounting Hole Spacing:1.023" (26.00mm)
Termination Style:Connector
Operating Temperature:-
Coil Resistance:2.4 Ohms
Features:Round Shaft
