WO-3809Z-14

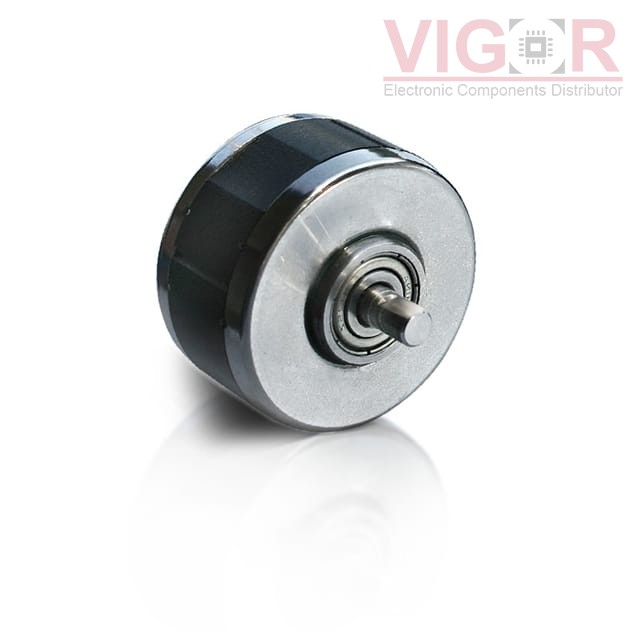

Image is for reference,
please contact us to get the real picture

Part No :: WO-3809Z-14

Manufacturer: Lin Engineering

Description: STEPPER MOTOR

Catalog: Stepper Motors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: WO-3809Z-14 PDF

Availability: 39 pieces

Unit Price: ~~$32.77000~~

Current price of WO-3809Z-14 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WO-3809Z-14 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	-
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	250 mA
Steps per Revolution:	400
Step Angle:	0.9°
Accuracy:	-
Torque - Holding (oz-in / mNm):	-
Size / Dimension:	Round - 1.429" Dia (36.30mm)
NEMA Frame Size:	14
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.591" (15.00mm)
Mounting Hole Spacing:	-
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	15.4 Ohms
Features:	Round Shaft

Please confirm the specifications of the products when ordering.
