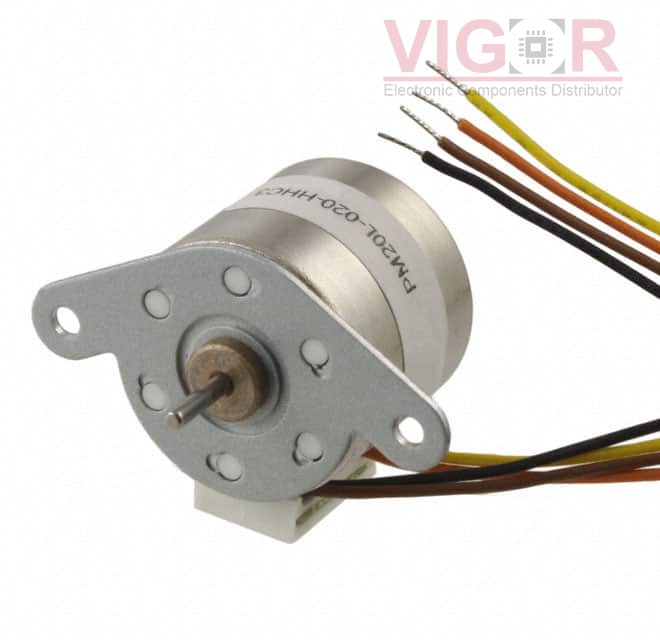

PM20L-020-HHC3

Image is for reference,
please contact us to get the real picture

Part No :: PM20L-020-HHC3

Manufacturer: NMB Technologies Corp.

Description: STEPPER MOTOR PM BIPOLAR 24V

Catalog: Stepper Motors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: PM20L-020-HHC3 PDF

Availability: 73 pieces

Unit Price: ~~$33.00000~~

Current price of PM20L-020-HHC3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM20L-020-HHC3 Specifications

Type	Description
Series:	PM
Package:	Bulk
Part Status:	Active
Type:	Permanent Magnet
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	400 mA
Steps per Revolution:	20
Step Angle:	18°
Accuracy:	-
Torque - Holding (oz-in / mNm):	2.1 / 15
Size / Dimension:	Round - 0.787" Dia (20.00mm)
NEMA Frame Size:	-
Diameter - Shaft:	0.059" (1.50mm)
Length - Shaft and Bearing:	0.315" (8.00mm)
Mounting Hole Spacing:	1.100" (28.00mm)
Termination Style:	Wire Leads
Operating Temperature:	-
Coil Resistance:	13 Ohms
Features:	Round Shaft

Please confirm the specifications of the products when ordering.
