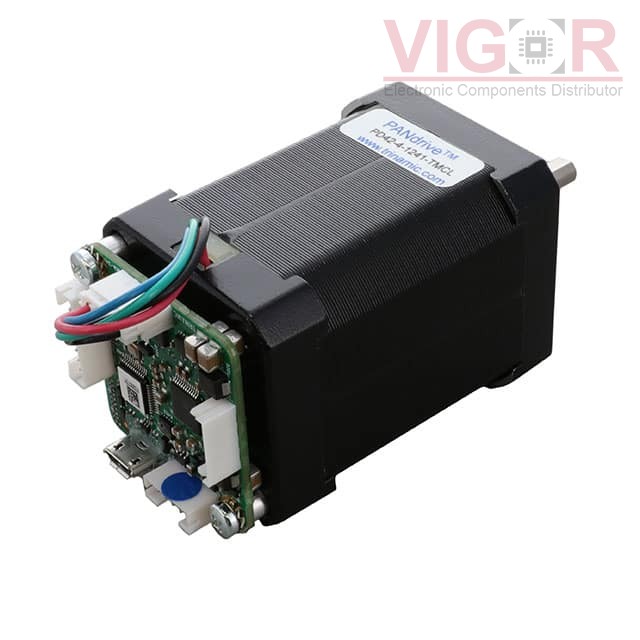

PD42-4-1241-TMCL

PD42-4-1241-TMCL

Image is for reference,
please contact us to get the real picture

Part No :

PD42-4-1241-TMCL

Manufacturer
TRINAMIC Motion Control GmbH
Description
PANDRIVE NEMA17, 24V, 0.8NM
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
PD42-4-1241-TMCL PDF
Availability
0 pieces
Unit Price
$249.38000

Current price of PD42-4-1241-TMCL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PD42-4-1241-TMCL Specifications
Type Description
Series:PANdrive™
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:3.3VDC
Current Rating (Amps):3 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):113.30 / 800
Size / Dimension:Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size:17
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.945" (24.00mm)
Mounting Hole Spacing:1.220" (31.00mm)
Termination Style:Wire Leads with Connector
Operating Temperature:-20°C ~ 50°C
Coil Resistance:1.1 Ohms
Features:Integrated Controller, Flatted Shaft
