17H118D10B

17H118D10B

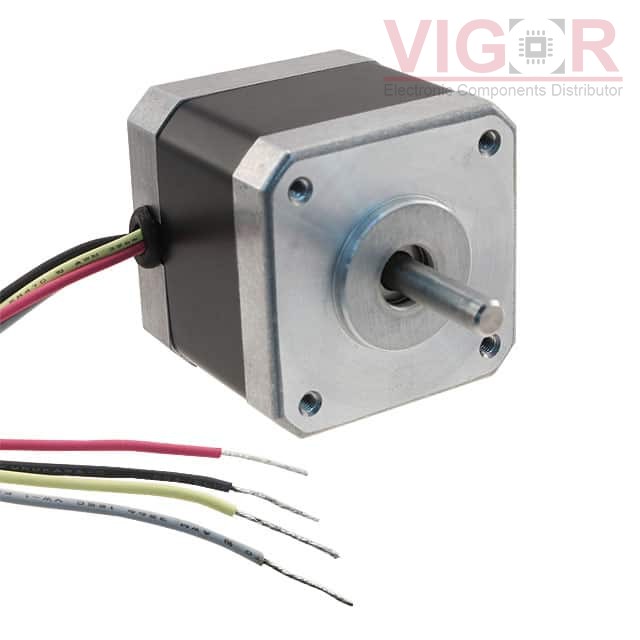

Image is for reference,
please contact us to get the real picture

Part No :

17H118D10B

Manufacturer
Portescap
Description
STEP MOTOR HYBRID BIPOLAR 4.1V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
17H118D10B PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 17H118D10B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

17H118D10B Specifications
Type Description
Series:H3
Package:Bulk
Part Status:Obsolete
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:4.1VDC
Current Rating (Amps):1 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):51 / 360
Size / Dimension:Square - 1.680" x 1.680" (42.67mm x 42.67mm)
NEMA Frame Size:17
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.790" (20.07mm)
Mounting Hole Spacing:1.220" (30.99mm)
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 40°C
Coil Resistance:4.12 Ohms
Features:Round Shaft
