316020003

316020003

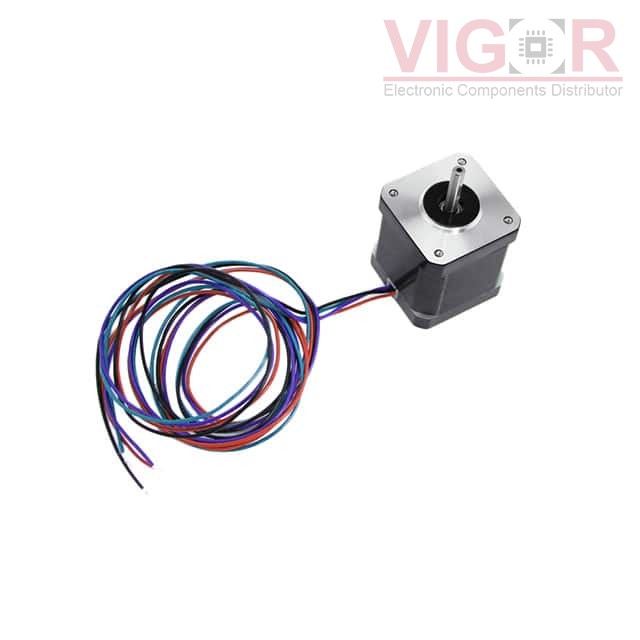

Image is for reference,
please contact us to get the real picture

Part No :

316020003

Manufacturer
Seeed
Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
316020003 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 316020003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

316020003 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):1.5 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:-
Torque - Holding (oz-in / mNm):76.38 / 539.37
Size / Dimension:Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size:17
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.867" (22.00mm)
Mounting Hole Spacing:1.220" (31.00mm)
Termination Style:Wire Leads
Operating Temperature:-
Coil Resistance:1.6 Ohms
Features:Round Shaft
