14PM-M247B

14PM-M247B

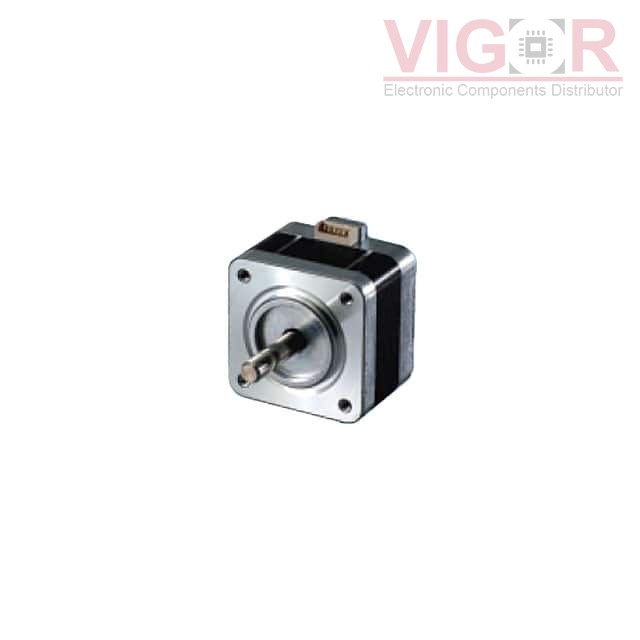

Image is for reference,
please contact us to get the real picture

Part No :

14PM-M247B

Manufacturer
NMB Technologies Corp.
Description
STEP MOTOR HYBRID UNIPOLAR 24V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
14PM-M247B PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 14PM-M247B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

14PM-M247B Specifications
Type Description
Series:14PM
Package:Bulk
Part Status:Obsolete
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):600 mA
Steps per Revolution:200
Step Angle:1.8°
Accuracy:-
Torque - Holding (oz-in / mNm):4.82 / 34
Size / Dimension:Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size:14
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.984" (25.00mm)
Mounting Hole Spacing:1.023" (26.00mm)
Termination Style:Wire Leads with Connector
Operating Temperature:-
Coil Resistance:3.8 Ohms
Features:Round Shaft
