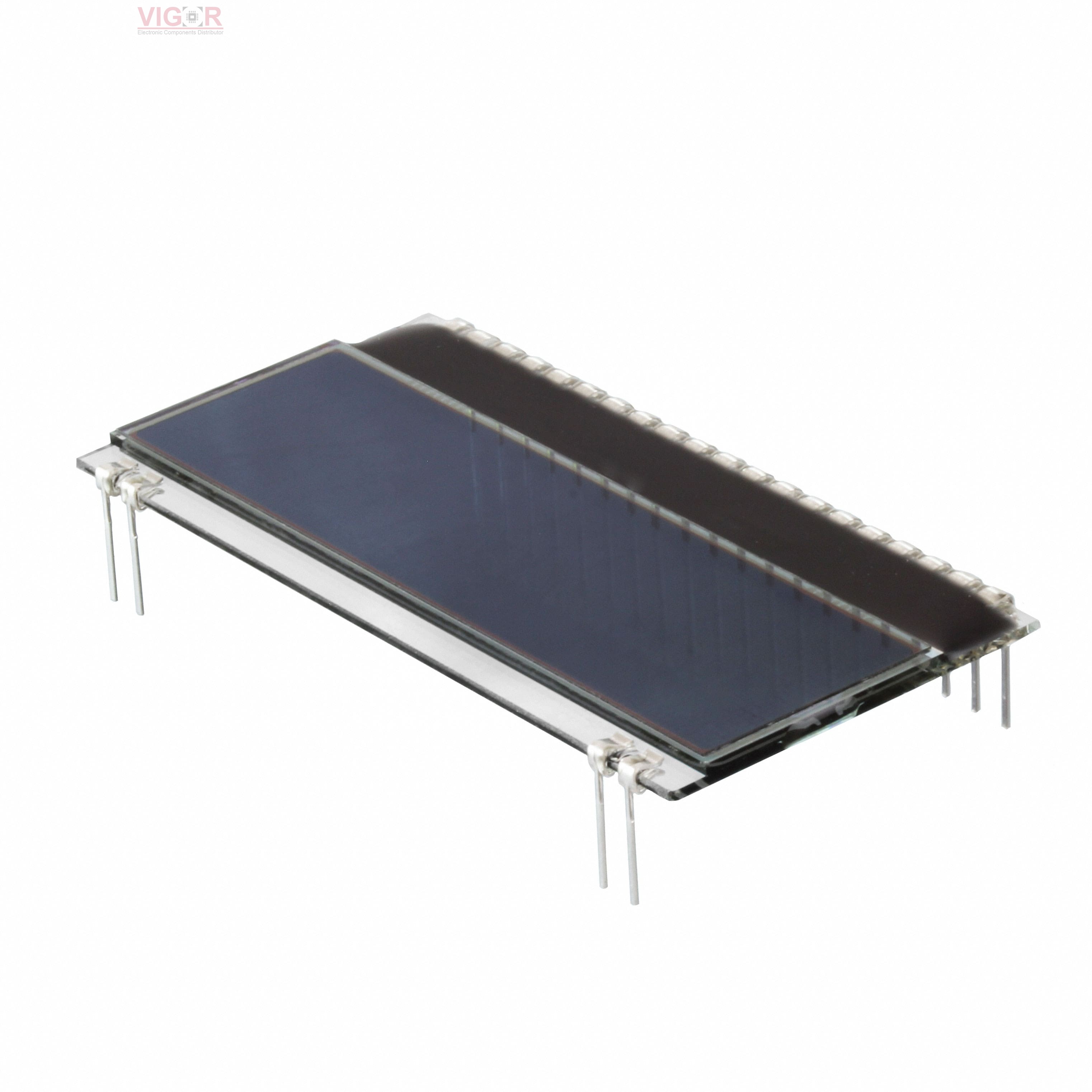

EA DOGM162S-A

Image is for reference,
please contact us to get the real picture

Part No :: EA DOGM162S-A

Manufacturer: Electronic Assembly (Display Visions)

Description: LCD MOD 32DIG 16 X 2 TRANSMISSIV

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: EA DOGM162S-A PDF

Availability: 0 pieces

Unit Price: ~~$16.21000~~

Current price of EA DOGM162S-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EA DOGM162S-A Specifications

Type	Description
Series:	EA DOG
Package:	Bag
Part Status:	Active
Number of Characters:	32
Display Format:	16 x 2
Character Format:	5 x 8 Dots
Display Type:	FSTN - Film Super-Twisted Nematic
Display Mode:	Transmissive
Character Size:	5.57mm H x 2.47mm W
Outline L x W x H:	55.00mm x 27.94mm x 2.00mm
Viewing Area:	51.00mm L x 14.50mm W
Backlight:	Without Backlight
Voltage - Supply:	3.3V
Dot Size:	0.47mm W x 0.67mm H
Interface:	Parallel, 8-Bit, SPI
Controller Type:	-
Operating Temperature:	-20°C ~ 70°C
Text Color:	White
Background Color:	Black

Please confirm the specifications of the products when ordering.
