C82AXBSBSW6WN55XAA

C82AXBSBSW6WN55XAA

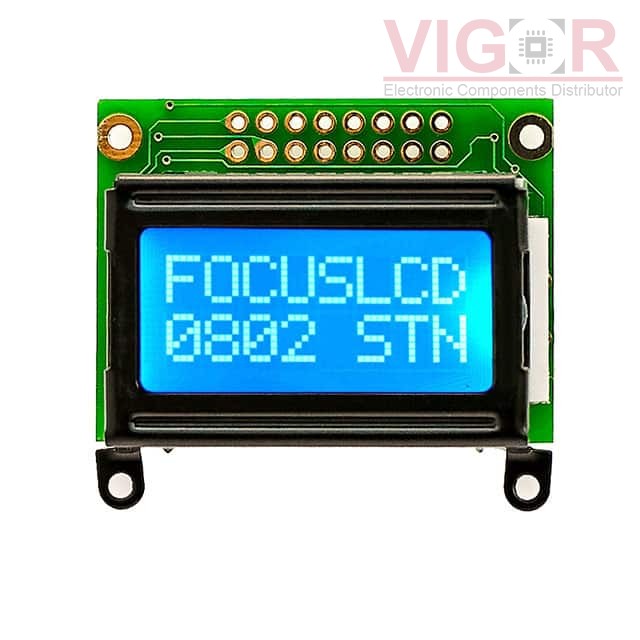

Image is for reference,
please contact us to get the real picture

Part No :

C82AXBSBSW6WN55XAA

Manufacturer
Focus LCDs
Description
8X2 STN BLUE CHARACTER LCD
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
C82AXBSBSW6WN55XAA PDF
Availability
106 pieces
Unit Price
$7.67000

Current price of C82AXBSBSW6WN55XAA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C82AXBSBSW6WN55XAA Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Number of Characters:16
Display Format:8 x 2
Character Format:5 x 8 Dots
Display Type:STN - Super-Twisted Nematic
Display Mode:Transmissive
Character Size:4.75mm H x 2.95mm W
Outline L x W x H:40.00mm x 35.40mm x 13.00mm
Viewing Area:30.40mm L x 13.90mm W
Backlight:LED - White
Voltage - Supply:4.5V ~ 5.5V
Dot Size:0.55mm W x 0.55mm H
Interface:Parallel, 4/8-Bit
Controller Type:ST7066U
Operating Temperature:-20°C ~ 70°C
Text Color:-
Background Color:Blue
