C82BXBSGN02WR2

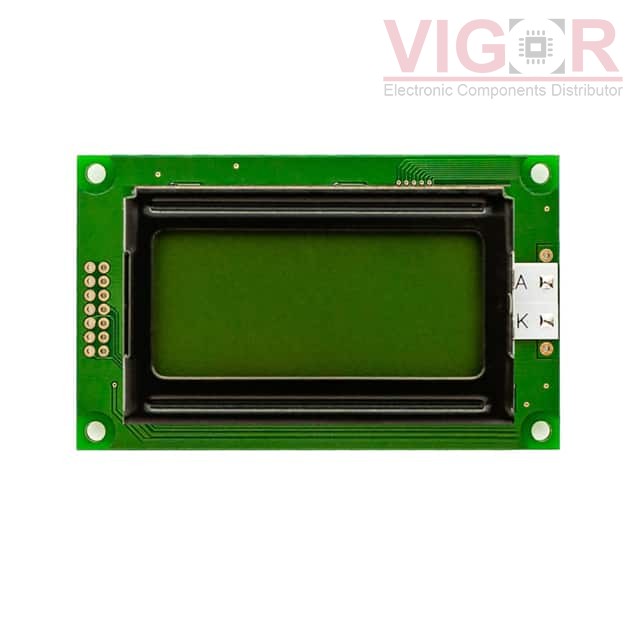

Image is for reference,
please contact us to get the real picture

Part No :: C82BXBSGN02WR2

Manufacturer: Focus LCDs

Description: 8X2 STN GRAY CHARACTER LCD

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: C82BXBSGN02WR2 PDF

Availability: 112 pieces

Unit Price: ~~$6.93000~~

Current price of C82BXBSGN02WR2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C82BXBSGN02WR2 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	16
Display Format:	8 x 2
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Reflective
Character Size:	5.56mm H x 2.96mm W
Outline L x W x H:	58.00mm x 32.00mm x 9.50mm
Viewing Area:	38.00mm L x 16.00mm W
Backlight:	Without Backlight
Voltage - Supply:	4.7V ~ 5.3V
Dot Size:	0.56mm W x 0.66mm H
Interface:	Parallel, 4/8-Bit
Controller Type:	S6A0069-00/01
Operating Temperature:	-20°C ~ 70°C
Text Color:	-
Background Color:	Gray

Please confirm the specifications of the products when ordering.
