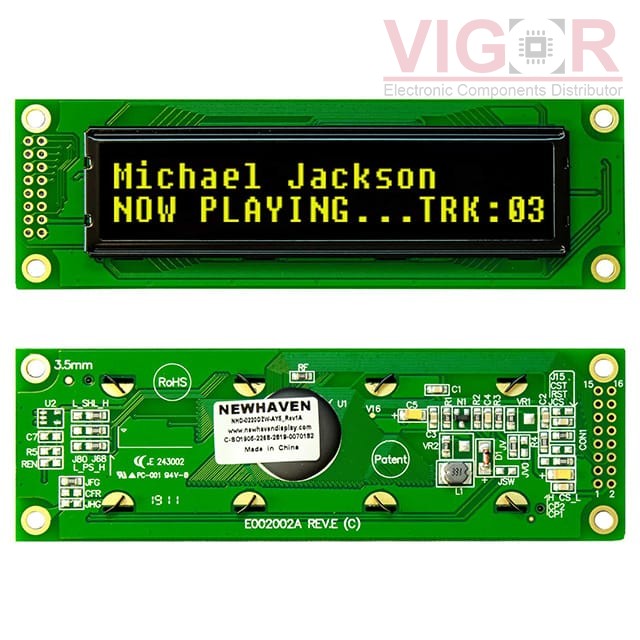

NHD-0220DZW-AY5

Image is for reference,
please contact us to get the real picture

Part No :: NHD-0220DZW-AY5

Manufacturer: Newhaven Display, Intl.

Description: LCD MODULE 40 DIG 20 X 2 PASSIVE

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: NHD-0220DZW-AY5 PDF

Availability: 99 pieces

Unit Price: ~~$30.50000~~

Current price of NHD-0220DZW-AY5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0220DZW-AY5 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Number of Characters:	40
Display Format:	20 x 2
Character Format:	5 x 8 Dots
Display Type:	OLED
Display Mode:	Passive
Character Size:	5.55mm H x 3.20mm W
Outline L x W x H:	116.00mm x 37.00mm x 9.80mm
Viewing Area:	85.00mm L x 18.60mm W
Backlight:	Without Backlight
Voltage - Supply:	3V ~ 5.3V
Dot Size:	0.60mm W x 0.65mm H
Interface:	Parallel/Serial
Controller Type:	-
Operating Temperature:	-40°C ~ 80°C
Text Color:	Yellow
Background Color:	Black

Please confirm the specifications of the products when ordering.
