NHD-0220DZ-FSW-FBW

NHD-0220DZ-FSW-FBW

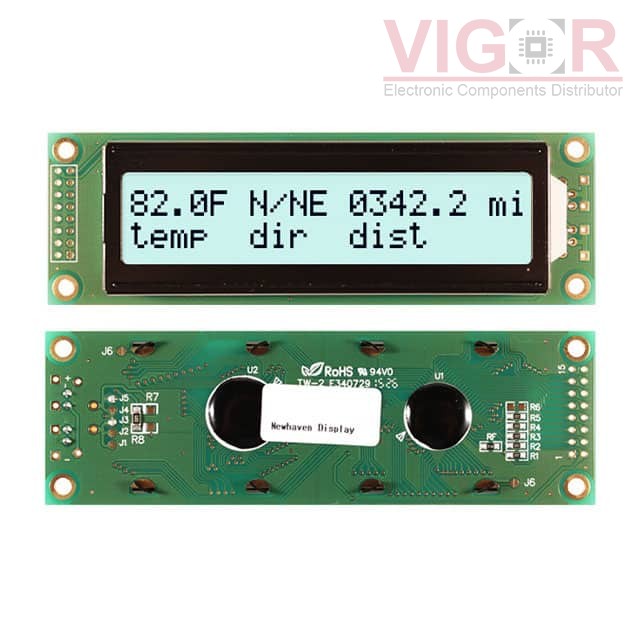

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0220DZ-FSW-FBW

Manufacturer
Newhaven Display, Intl.
Description
LCD MOD 40DIG 20X2 TRANSFLCT WHT
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
NHD-0220DZ-FSW-FBW PDF
Availability
384 pieces
Unit Price
$16.19000

Current price of NHD-0220DZ-FSW-FBW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0220DZ-FSW-FBW Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Number of Characters:40
Display Format:20 x 2
Character Format:5 x 8 Dots
Display Type:FSTN - Film Super-Twisted Nematic
Display Mode:Transflective
Character Size:5.95mm H x 3.20mm W
Outline L x W x H:116.00mm x 37.00mm x 13.50mm
Viewing Area:83.00mm L x 18.60mm W
Backlight:LED - White
Voltage - Supply:4.7V ~ 5.5V
Dot Size:0.60mm W x 0.65mm H
Interface:Parallel
Controller Type:SPLC780D OR ST7066U
Operating Temperature:-20°C ~ 70°C
Text Color:Black
Background Color:White
