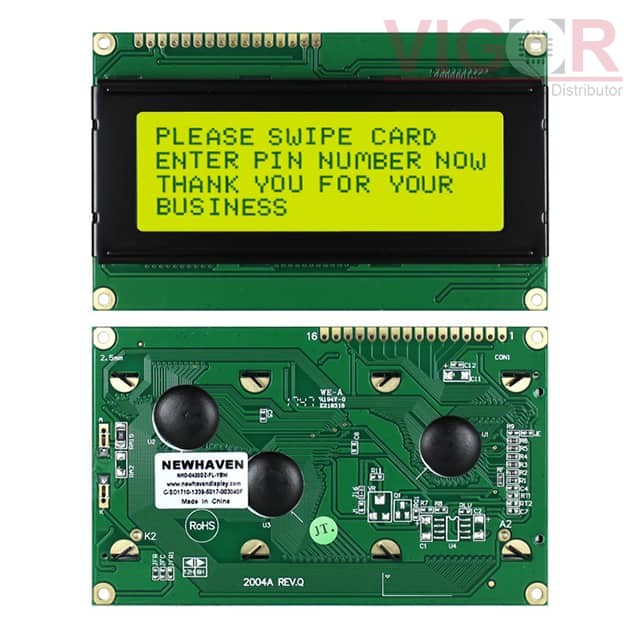

NHD-0420DZ-FL-YBW

Image is for reference,
please contact us to get the real picture

Part No :: NHD-0420DZ-FL-YBW

Manufacturer: Newhaven Display, Intl.

Description: LCD MOD 80DIG 20X4 TRANS YLW/GRN

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: NHD-0420DZ-FL-YBW PDF

Availability: 1342 pieces

Unit Price: ~~$23.73000~~

Current price of NHD-0420DZ-FL-YBW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0420DZ-FL-YBW Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	80
Display Format:	20 x 4
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Transflective
Character Size:	4.75mm H x 2.95mm W
Outline L x W x H:	98.00mm x 60.00mm x 13.60mm
Viewing Area:	77.00mm L x 25.20mm W
Backlight:	LED - Yellow/Green
Voltage - Supply:	4.5V ~ 5.5V
Dot Size:	0.55mm W x 0.55mm H
Interface:	Parallel
Controller Type:	SPLC780D OR ST7066U
Operating Temperature:	-20°C ~ 70°C
Text Color:	Gray
Background Color:	Green

Please confirm the specifications of the products when ordering.
