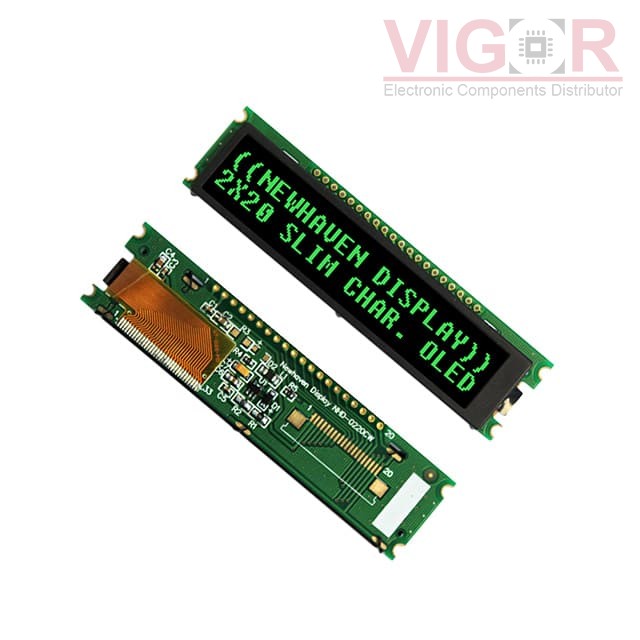

NHD-0220CW-AG3

Image is for reference,
please contact us to get the real picture

Part No :: NHD-0220CW-AG3

Manufacturer: Newhaven Display, Intl.

Description: LCD MODULE 40 DIG 20 X 2 PASSIVE

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: NHD-0220CW-AG3 PDF

Availability: 0 pieces

Unit Price: ~~$29.43000~~

Current price of NHD-0220CW-AG3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0220CW-AG3 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Number of Characters:	40
Display Format:	20 x 2
Character Format:	5 x 8 Dots
Display Type:	OLED
Display Mode:	Passive
Character Size:	5.57mm H x 3.22mm W
Outline L x W x H:	92.00mm x 23.30mm x 2.50mm
Viewing Area:	77.92mm L x 16.28mm W
Backlight:	-
Voltage - Supply:	2.4V ~ 5.5V
Dot Size:	0.62mm W x 0.67mm H
Interface:	Parallel, 8-Bit, I²C, SPI
Controller Type:	US2066
Operating Temperature:	-40°C ~ 85°C
Text Color:	Green
Background Color:	Black

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

AMC2002CR-B-G6WFDY

LCD COB CHAR 20X2 GRAY TRANSF

HOT

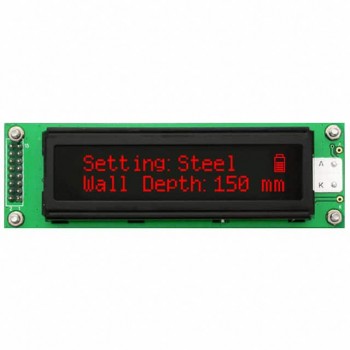

LK202-25-R
