NHD-0420D3Z-NSW-BBW-V3

NHD-0420D3Z-NSW-BBW-V3

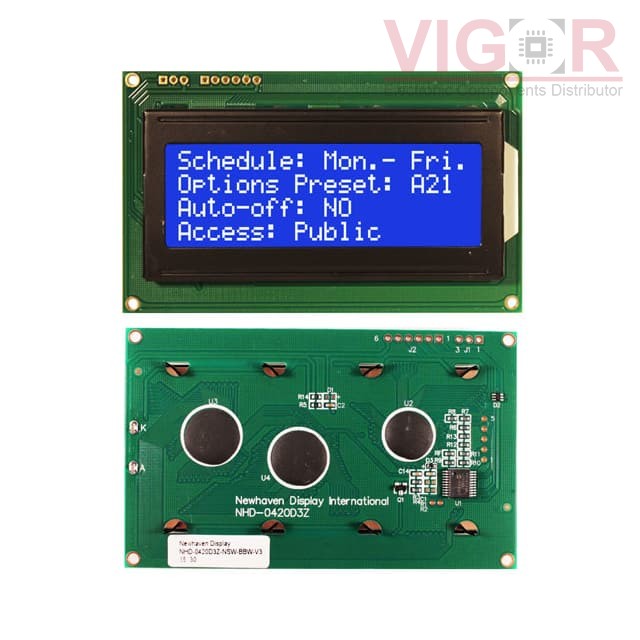

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0420D3Z-NSW-BBW-V3

Manufacturer
Newhaven Display, Intl.
Description
LCD MOD 80DIG 20X4 TRANSMISV WHT
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
NHD-0420D3Z-NSW-BBW-V3 PDF
Availability
1880 pieces
Unit Price
$24.35000

Current price of NHD-0420D3Z-NSW-BBW-V3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0420D3Z-NSW-BBW-V3 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Number of Characters:80
Display Format:20 x 4
Character Format:5 x 8 Dots
Display Type:STN - Super-Twisted Nematic
Display Mode:Transmissive
Character Size:4.75mm H x 2.95mm W
Outline L x W x H:98.00mm x 60.00mm x 13.50mm
Viewing Area:76.00mm L x 25.20mm W
Backlight:LED - White
Voltage - Supply:4.7V ~ 5.5V
Dot Size:0.55mm W x 0.55mm H
Interface:I²C, RS-232, SPI
Controller Type:PIC16F699
Operating Temperature:-20°C ~ 70°C
Text Color:White
Background Color:Blue
