EA DOGM163L-A

EA DOGM163L-A

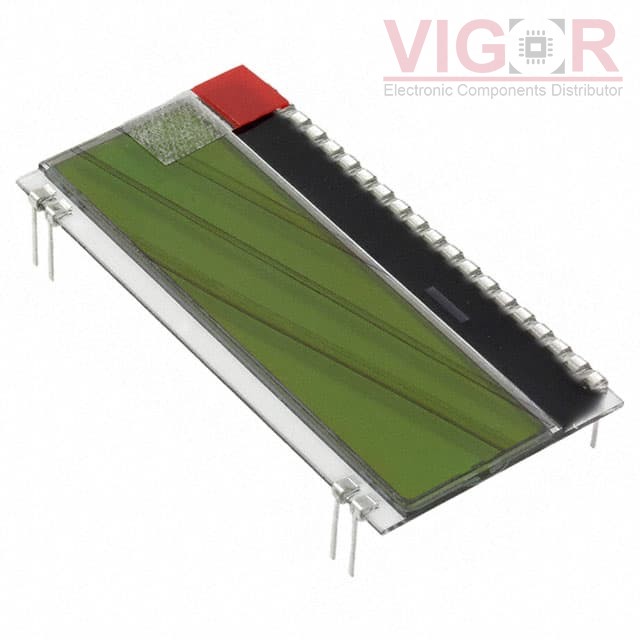

Image is for reference,
please contact us to get the real picture

Part No :

EA DOGM163L-A

Manufacturer
Electronic Assembly (Display Visions)
Description
LCD MOD 48 DIG 16 X 3 REFLECTIVE
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
EA DOGM163L-A PDF
Availability
398 pieces
Unit Price
$16.97000

Current price of EA DOGM163L-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EA DOGM163L-A Specifications
Type Description
Series:EA DOG
Package:Bag
Part Status:Active
Number of Characters:48
Display Format:16 x 3
Character Format:5 x 8 Dots
Display Type:STN - Super-Twisted Nematic
Display Mode:Reflective
Character Size:3.65mm H x 2.47mm W
Outline L x W x H:55.00mm x 27.94mm x 2.00mm
Viewing Area:51.00mm L x 14.50mm W
Backlight:Without Backlight
Voltage - Supply:3.3V
Dot Size:0.47mm W x 0.43mm H
Interface:Parallel, 8-Bit, SPI
Controller Type:-
Operating Temperature:-20°C ~ 70°C
Text Color:Gray
Background Color:Green
