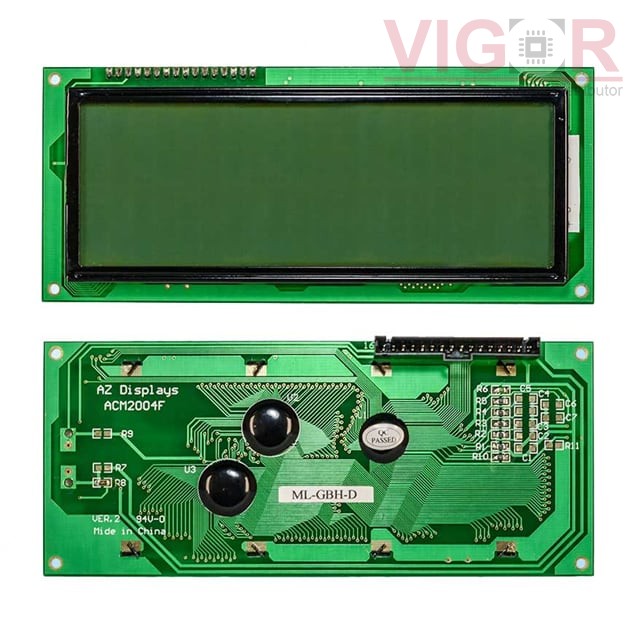

ACM2004F-FL-YBW-R

Image is for reference,
please contact us to get the real picture

Part No :: ACM2004F-FL-YBW-R

Manufacturer: AZ Displays

Description: 20 X 4 CHARACTER MONOCHROME

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ACM2004F-FL-YBW-R PDF

Availability: 0 pieces

Unit Price: ~~$19.00000~~

Current price of ACM2004F-FL-YBW-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACM2004F-FL-YBW-R Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	80
Display Format:	20 x 4
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Transflective
Character Size:	9.23mm H x 4.85mm W
Outline L x W x H:	146.00mm x 62.50mm x 14.20mm
Viewing Area:	123.00mm L x 42.50mm W
Backlight:	LED - Yellow/Green
Voltage - Supply:	4.8V ~ 5.2V
Dot Size:	0.93mm W x 1.11mm H
Interface:	-
Controller Type:	ST7066U-0A
Operating Temperature:	-20°C ~ 70°C
Text Color:	-
Background Color:	-

Please confirm the specifications of the products when ordering.
