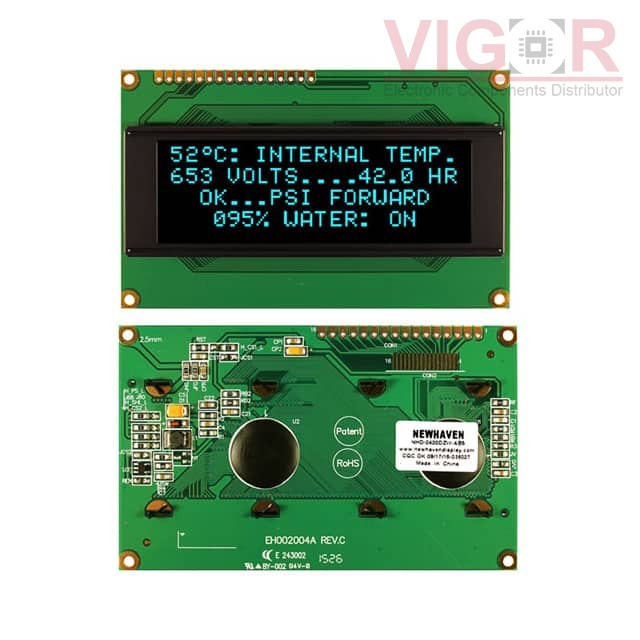

NHD-0420DZW-AB5

NHD-0420DZW-AB5

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0420DZW-AB5

Manufacturer
Newhaven Display, Intl.
Description
LCD MODULE 80 DIG 20 X 4 PASSIVE
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
NHD-0420DZW-AB5 PDF
Availability
2932 pieces
Unit Price
$38.91000

Current price of NHD-0420DZW-AB5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0420DZW-AB5 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Characters:80
Display Format:20 x 4
Character Format:5 x 8 Dots
Display Type:OLED
Display Mode:Passive
Character Size:4.75mm H x 2.90mm W
Outline L x W x H:98.00mm x 60.00mm x 10.00mm
Viewing Area:77.00mm L x 25.20mm W
Backlight:Without Backlight
Voltage - Supply:3V ~ 5.3V
Dot Size:0.54mm W x 0.55mm H
Interface:Parallel/Serial
Controller Type:-
Operating Temperature:-40°C ~ 80°C
Text Color:Blue
Background Color:Black
