AMC0801AR-B-Y6WFDY

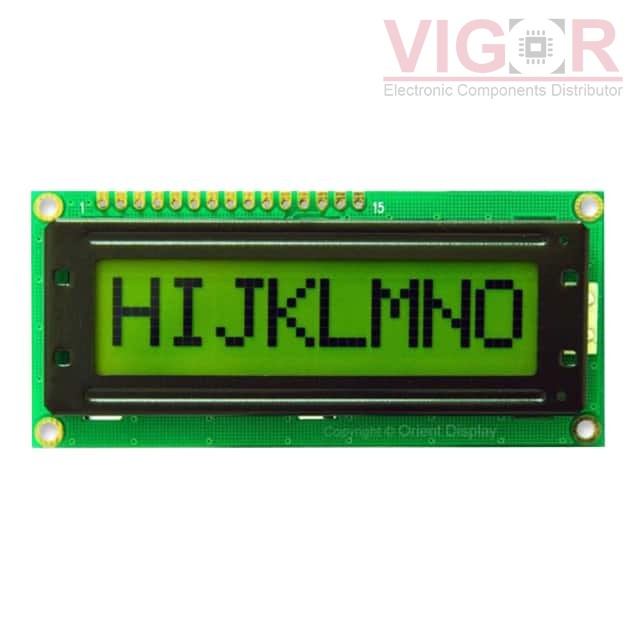

Image is for reference,
please contact us to get the real picture

Part No :: AMC0801AR-B-Y6WFDY

Manufacturer: Orient Display

Description: LCD COB CHAR 8X1 Y/G TRANSF

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: AMC0801AR-B-Y6WFDY PDF

Availability: 101 pieces

Unit Price: ~~$6.35000~~

Current price of AMC0801AR-B-Y6WFDY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMC0801AR-B-Y6WFDY Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	8
Display Format:	8 x 1
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Transflective
Character Size:	10.75mm H x 6.45mm W
Outline L x W x H:	80.00mm x 36.00mm x 13.00mm
Viewing Area:	61.00mm L x 15.80mm W
Backlight:	LED - Yellow/Green
Voltage - Supply:	4.5V ~ 5.5V
Dot Size:	1.25mm W x 1.30mm H
Interface:	Parallel, 8-Bit
Controller Type:	S6A0069
Operating Temperature:	-20°C ~ 70°C
Text Color:	Dark Blue
Background Color:	Yellow/Green

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LCD2041-WB

LCD MODULE 80 DIG 20 X 4

HOT

C204ADBSGSW6WT55XAC

20X4 STN GRAY CHARACTER LCD

HOT

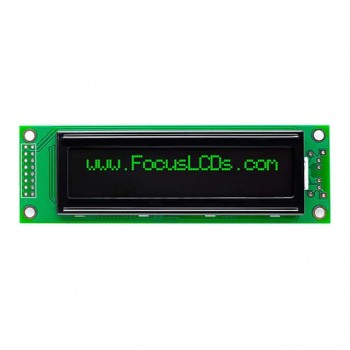

C202B-UG-LW65
