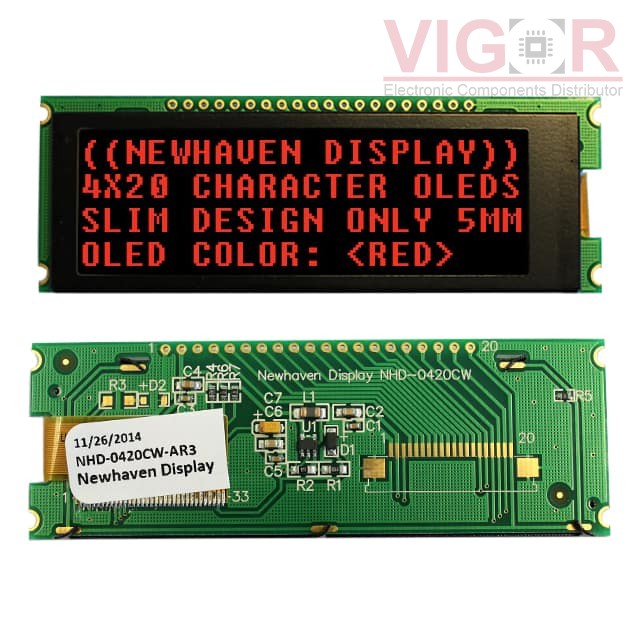

NHD-0420CW-AR3

Image is for reference,
please contact us to get the real picture

Part No :: NHD-0420CW-AR3

Manufacturer: Newhaven Display, Intl.

Description: LCD MODULE 80 DIG 20 X 4 PASSIVE

Catalog: Display Modules - LCD, OLED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: NHD-0420CW-AR3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of NHD-0420CW-AR3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0420CW-AR3 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Number of Characters:	80
Display Format:	20 x 4
Character Format:	5 x 8 Dots
Display Type:	OLED
Display Mode:	Passive
Character Size:	4.77mm H x 2.97mm W
Outline L x W x H:	92.00mm x 31.50mm x 2.50mm
Viewing Area:	72.42mm L x 22.82mm W
Backlight:	-
Voltage - Supply:	2.4V ~ 5.5V
Dot Size:	0.57mm W x 0.57mm H
Interface:	Parallel, 8-Bit, I²C, SPI
Controller Type:	-
Operating Temperature:	-40°C ~ 85°C
Text Color:	Red
Background Color:	Black
