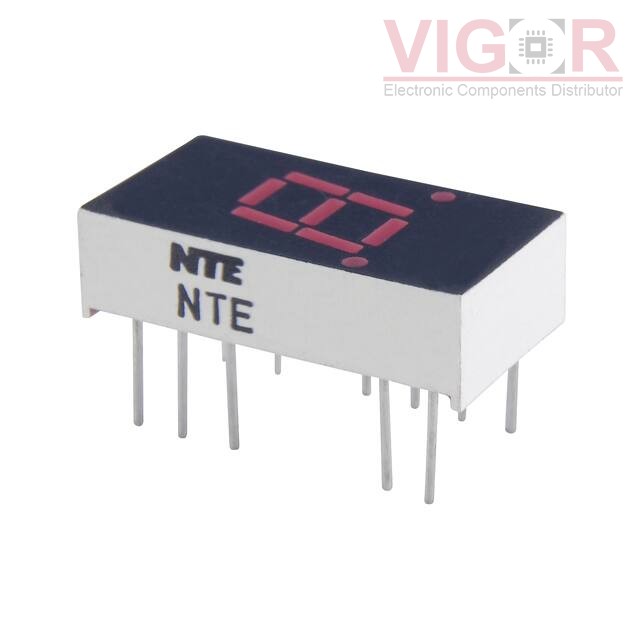

NTE3056

Image is for reference,
please contact us to get the real picture

Part No :: NTE3056

Manufacturer: NTE Electronics, Inc.

Description: LED-DISPLAY-RED

Catalog: Display Modules - LED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: NTE3056 PDF

Availability: 136 pieces

Unit Price: ~~$3.04000~~

Current price of NTE3056 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE3056 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Display Format:	-
Number of Characters:	1
Size / Dimension:	0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size:	0.30" (7.62mm)
Display Type:	7-Segment
Common Pin:	Common Cathode
Color:	Red
Voltage - Forward (Vf) (Typ):	1.85V
Current - Test:	20mA
Millicandela Rating:	10.5mcd
Wavelength - Peak:	660nm
Power Dissipation (Max):	100mW
Package / Case:	14-DIP (0.300", 7.62mm), 10 Leads

Please confirm the specifications of the products when ordering.
