QBQS560R

QBQS560R

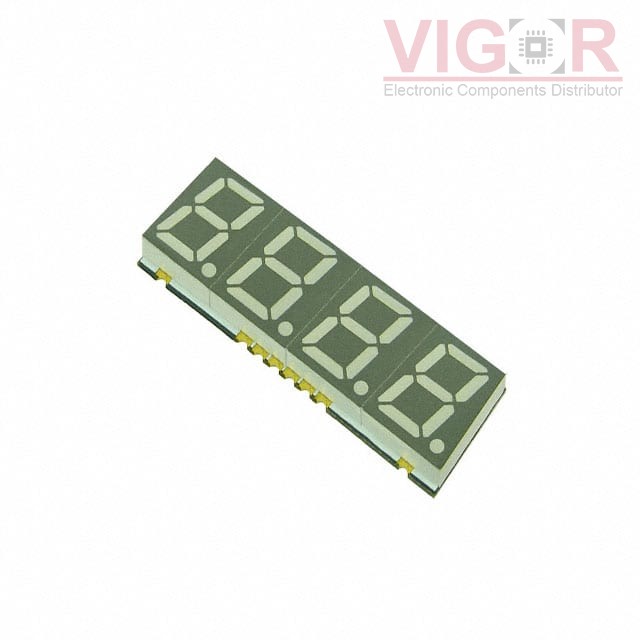

Image is for reference,
please contact us to get the real picture

Part No :

QBQS560R

Manufacturer
QT Brightek
Description
DISP 7SEG 0.56" QUAD RED 12SMD
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
QBQS560R PDF
Availability
83 pieces
Unit Price
$9.44000

Current price of QBQS560R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QBQS560R Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Display Format:-
Number of Characters:4
Size / Dimension:0.669" H x 1.969" W x 0.128" D (17.00mm x 50.00mm x 3.25mm)
Digit/Alpha Size:0.56" (14.22mm)
Display Type:7-Segment
Common Pin:Common Anode
Color:Red
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Millicandela Rating:25mcd
Wavelength - Peak:625nm
Power Dissipation (Max):70mW
Package / Case:12-SMD, No Lead
