SDTC56R2W

SDTC56R2W

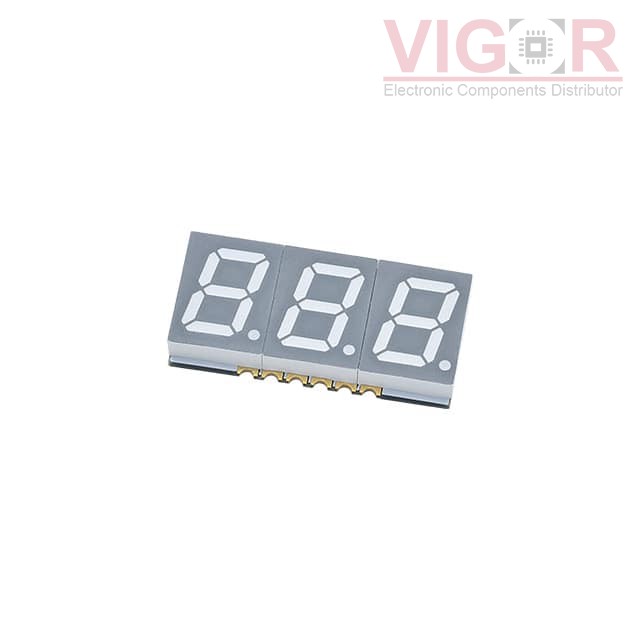

Image is for reference,
please contact us to get the real picture

Part No :

SDTC56R2W

Manufacturer
ChromeLED
Description
DISPLAY 7SEG 0.56" TRI RED 11SMD
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SDTC56R2W PDF
Availability
0 pieces
Unit Price
$3.90000

Current price of SDTC56R2W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDTC56R2W Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Display Format:-
Number of Characters:3
Size / Dimension:0.669" H x 1.476" W x 0.152" D (17.00mm x 37.50mm x 3.85mm)
Digit/Alpha Size:0.56" (14.20mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Millicandela Rating:25mcd
Wavelength - Peak:625nm
Power Dissipation (Max):70mW
Package / Case:11-SMD, No Lead
