CDSA80W2WB

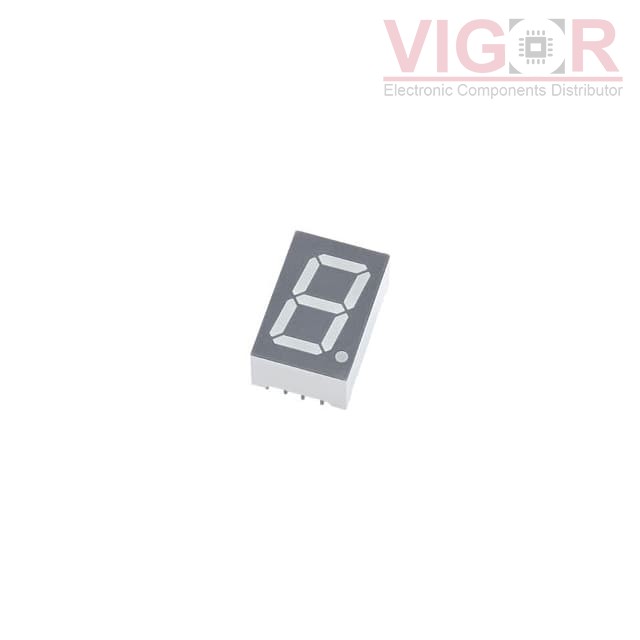

Image is for reference,
please contact us to get the real picture

Part No :: CDSA80W2WB

Manufacturer: ChromeLED

Description: DISPLAY 7SEG 0.80" SGL WHITE 16D

Catalog: Display Modules - LED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: CDSA80W2WB PDF

Availability: 0 pieces

Unit Price: ~~$2.20000~~

Current price of CDSA80W2WB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDSA80W2WB Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Display Format:	-
Number of Characters:	1
Size / Dimension:	1.091" H x 0.787" W x 0.330" D (27.70mm x 20.00mm x 8.40mm)
Digit/Alpha Size:	0.80" (20.32mm)
Display Type:	7-Segment
Common Pin:	Common Anode
Color:	White
Voltage - Forward (Vf) (Typ):	3.2V
Current - Test:	5mA
Millicandela Rating:	25mcd
Wavelength - Peak:	-
Power Dissipation (Max):	78mW
Package / Case:	16-DIP
