CDSC56Y1WF

CDSC56Y1WF

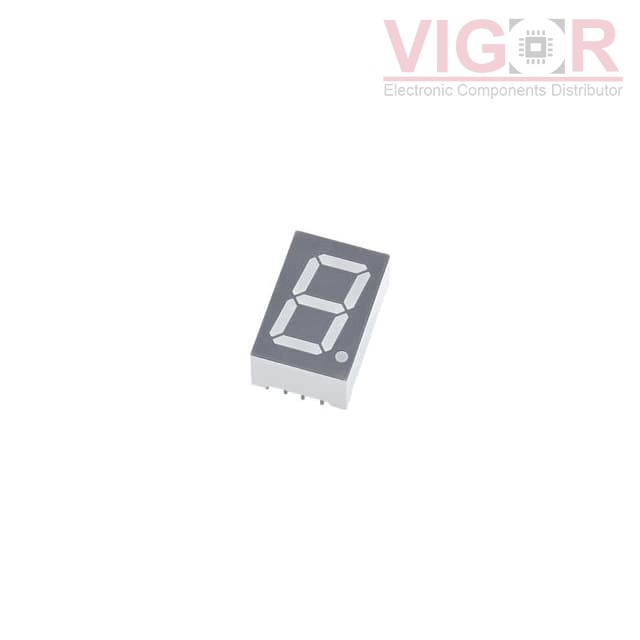

Image is for reference,
please contact us to get the real picture

Part No :

CDSC56Y1WF

Manufacturer
ChromeLED
Description
DISPLAY 7SEG 0.56" SGL YELLOW 10
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
CDSC56Y1WF PDF
Availability
0 pieces
Unit Price
$0.99000

Current price of CDSC56Y1WF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDSC56Y1WF Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm)
Digit/Alpha Size:0.56" (14.20mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Yellow
Voltage - Forward (Vf) (Typ):2V
Current - Test:10mA
Millicandela Rating:4.7mcd
Wavelength - Peak:-
Power Dissipation (Max):75mW
Package / Case:10-DIP
