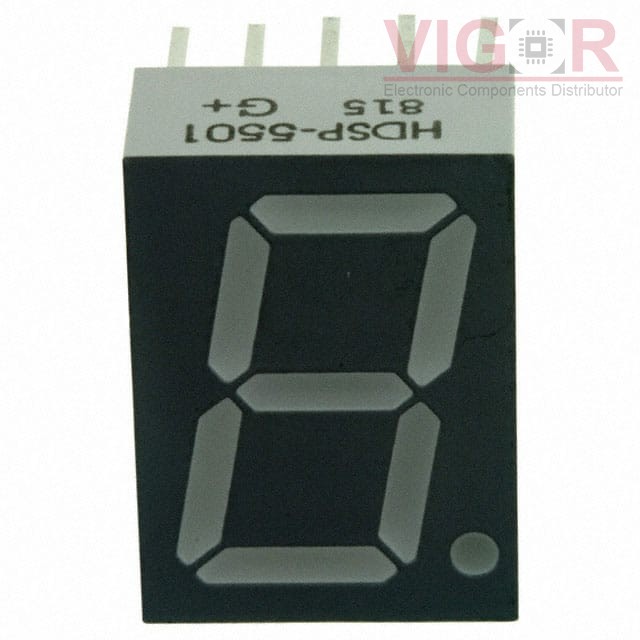

HDSP-5501

Image is for reference,
please contact us to get the real picture

Part No :: HDSP-5501

Manufacturer: Broadcom

Description: DISPLAY 7SEG 0.56" SGL RED 10DIP

Catalog: Display Modules - LED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: HDSP-5501 PDF

Availability: 730 pieces

Unit Price: ~~$3.15000~~

Current price of HDSP-5501 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HDSP-5501 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Display Format:	-
Number of Characters:	1
Size / Dimension:	0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm)
Digit/Alpha Size:	0.56" (14.22mm)
Display Type:	7-Segment
Common Pin:	Common Anode
Color:	Red
Voltage - Forward (Vf) (Typ):	2.1V
Current - Test:	20mA
Millicandela Rating:	2.8mcd
Wavelength - Peak:	635nm
Power Dissipation (Max):	105mW
Package / Case:	10-DIP (0.600", 15.24mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

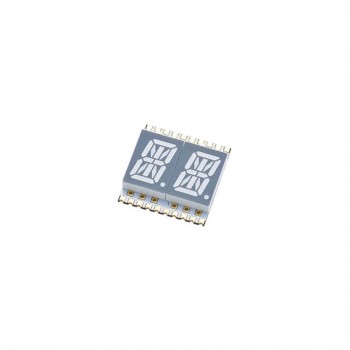

SDSCN40G21W
