CDSC80R2W

CDSC80R2W

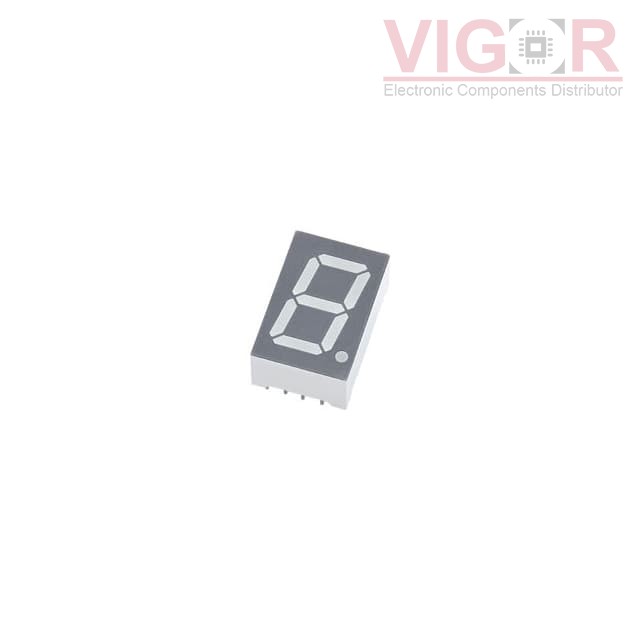

Image is for reference,
please contact us to get the real picture

Part No :

CDSC80R2W

Manufacturer
ChromeLED
Description
DISPLAY 7SEG 0.80" SGL RED 18DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
CDSC80R2W PDF
Availability
0 pieces
Unit Price
$1.48000

Current price of CDSC80R2W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDSC80R2W Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:0.984" H x 0.732" W x 0.413" D (25.00mm x 18.60mm x 10.50mm)
Digit/Alpha Size:0.80" (20.32mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2V
Current - Test:10mA
Millicandela Rating:15mcd
Wavelength - Peak:-
Power Dissipation (Max):70mW
Package / Case:16-DIP
