CDQA56R2WF-A

CDQA56R2WF-A

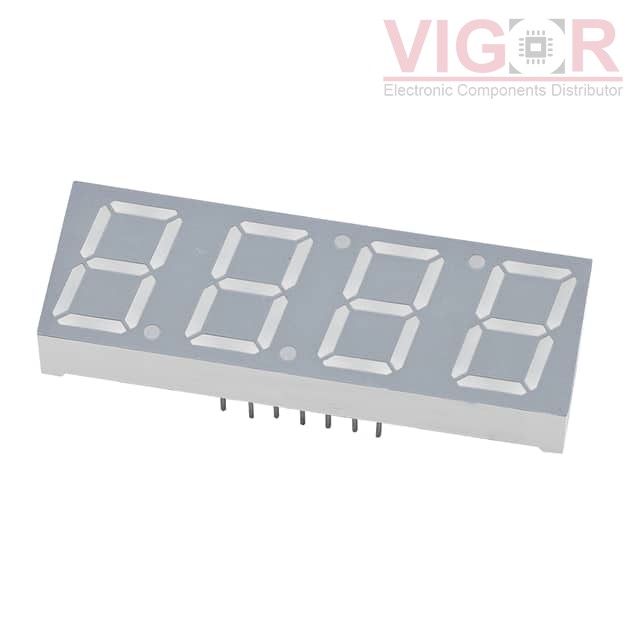

Image is for reference,
please contact us to get the real picture

Part No :

CDQA56R2WF-A

Manufacturer
ChromeLED
Description
DISPLAY 7SEG 0.56" QUAD RED 12DI
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CDQA56R2WF-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CDQA56R2WF-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDQA56R2WF-A Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Display Format:-
Number of Characters:4
Size / Dimension:0.673" H x 1.980" W x 0.315" D (17.10mm x 50.40mm x 8.00mm)
Digit/Alpha Size:0.56" (14.20mm)
Display Type:7-Segment
Common Pin:Common Anode
Color:Red
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Millicandela Rating:30mcd
Wavelength - Peak:624nm
Power Dissipation (Max):70mW
Package / Case:12-DIP
