MAN74A

MAN74A

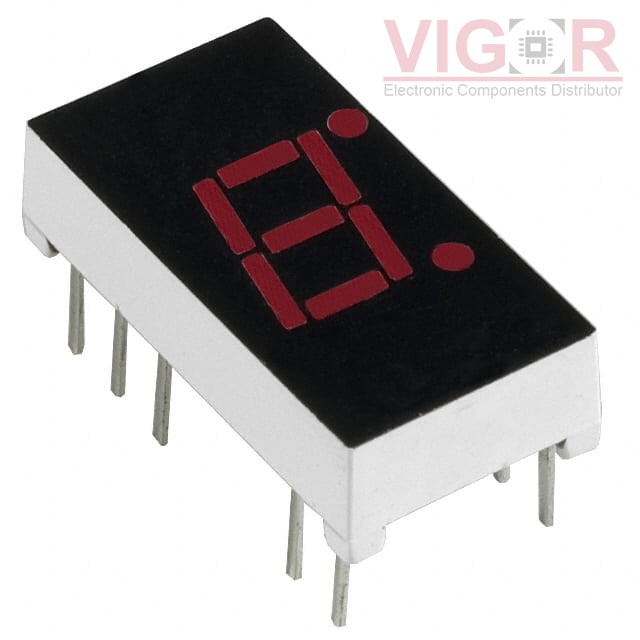

Image is for reference,
please contact us to get the real picture

Part No :

MAN74A

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DISPLAY 7-SEG 0.3" SGL RED 14DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
MAN74A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MAN74A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAN74A Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Display Format:-
Number of Characters:1
Size / Dimension:0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size:0.30" (7.62mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2.2V
Current - Test:20mA
Millicandela Rating:0.35mcd
Wavelength - Peak:660nm
Power Dissipation (Max):480mW
Package / Case:14-DIP (0.300", 7.62mm), 10 Leads
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT XZFCWD14C

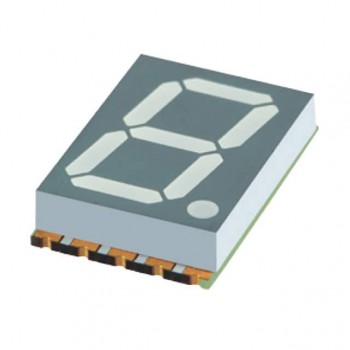

XZFCWD14C

DISPLAY 7SEG 0.56" SGL WHT 10SMD
HOT XZFCBD14C2

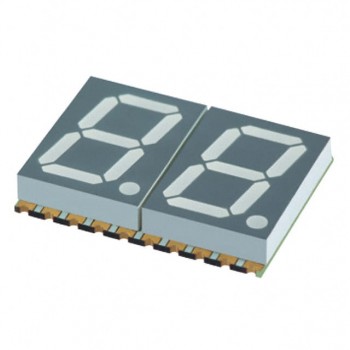

XZFCBD14C2

DISPLAY 7SEG 0.56" DBL BLU 20SMD
HOT LDD-HTF302NI

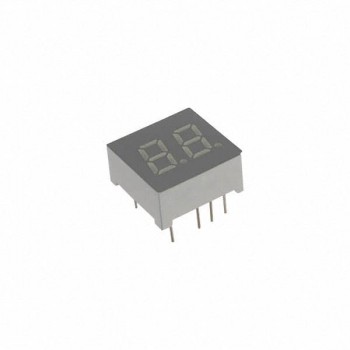

LDD-HTF302NI
