MAN3940A

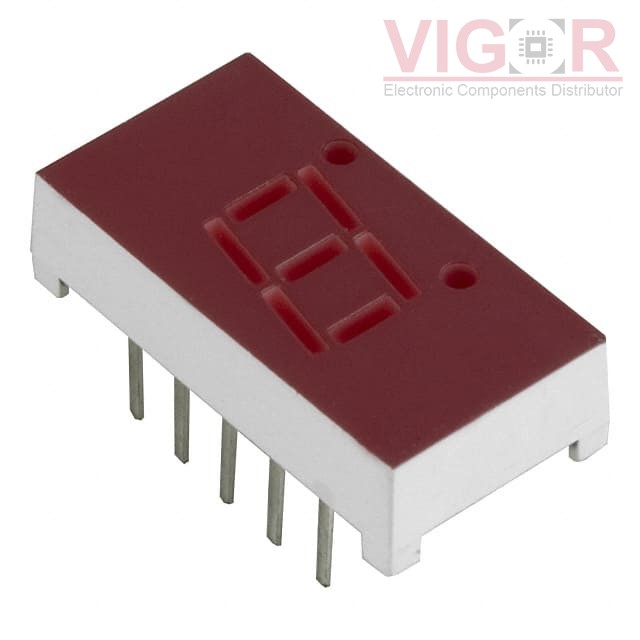

Image is for reference,
please contact us to get the real picture

Part No :: MAN3940A

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: DISPLAY 7-SEG 0.3" SGL RED 14DIP

Catalog: Display Modules - LED Character and Numeric

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: MAN3940A PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of MAN3940A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAN3940A Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Display Format:	-
Number of Characters:	1
Size / Dimension:	0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size:	0.30" (7.62mm)
Display Type:	7-Segment
Common Pin:	Common Cathode
Color:	Red
Voltage - Forward (Vf) (Typ):	2.5V (Max)
Current - Test:	20mA
Millicandela Rating:	1.9mcd
Wavelength - Peak:	635nm
Power Dissipation (Max):	600mW
Package / Case:	14-DIP (0.300", 7.62mm)
