MAN6780

MAN6780

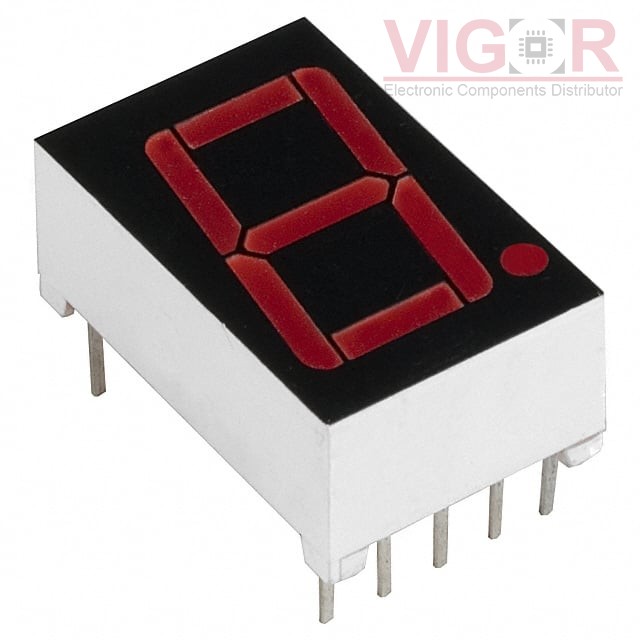

Image is for reference,
please contact us to get the real picture

Part No :

MAN6780

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DISPLAY 7SEG 0.56" SGL RED 10DIP
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
MAN6780 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MAN6780 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAN6780 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Display Format:-
Number of Characters:1
Size / Dimension:0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm)
Digit/Alpha Size:0.56" (14.22mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2V (Max)
Current - Test:20mA
Millicandela Rating:0.42mcd
Wavelength - Peak:650nm
Power Dissipation (Max):480mW
Package / Case:10-DIP (0.600", 15.24mm)
