Type | Description |
---|---|
Series: | - |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Color: | Green, Red |
Configuration: | Independent |
Lens Color: | Colorless |
Lens Transparency: | Clear |
Millicandela Rating: | 12mcd Green, 7mcd Red |
Lens Style: | Rectangle with Flat Top |
Lens Size: | 1.20mm x 1.50mm |
Voltage - Forward (Vf) (Typ): | 2.2V Green, 2V Red |
Current - Test: | 20mA Green, 20mA Red |
Viewing Angle: | 120° |
Mounting Type: | Surface Mount |
Wavelength - Dominant: | 568nm Green, 617nm Red |
Wavelength - Peak: | 565nm Green, 627nm Red |
Features: | - |
Package / Case: | 0606 (1616 Metric) |
Supplier Device Package: | Chip LED |
Size / Dimension: | 1.60mm L x 1.50mm W |
Height (Max): | 0.70mm |

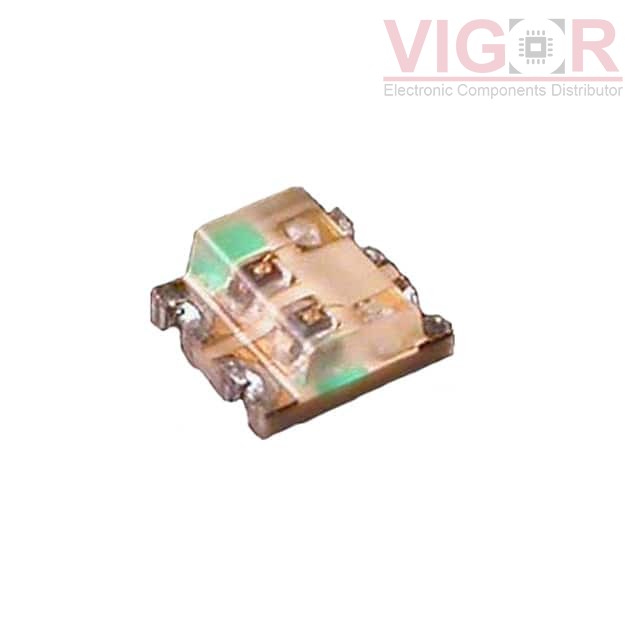

LED GREEN/RED CLEAR CHIP SMD
