Current price of CXM-22-40-70-36-AC00-F2-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | CXM-22 |
Package: | Tray |
Part Status: | Not For New Designs |
Type: | Chip On Board (COB) |
Color: | White, Neutral |
CCT (K): | 4000K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 6060lm (Typ) |
Current - Test: | 1.28A |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 35V |
Lumens/Watt @ Current - Test: | 135 lm/W |
Current - Max: | 2.56A |
CRI (Color Rendering Index): | 70 |
Viewing Angle: | 120° |
Features: | - |
Size / Dimension: | 28.00mm L x 28.00mm W |
Height: | 1.37mm |
Light Emitting Surface (LES): | 22.00mm Dia |
Lens Type: | Flat |

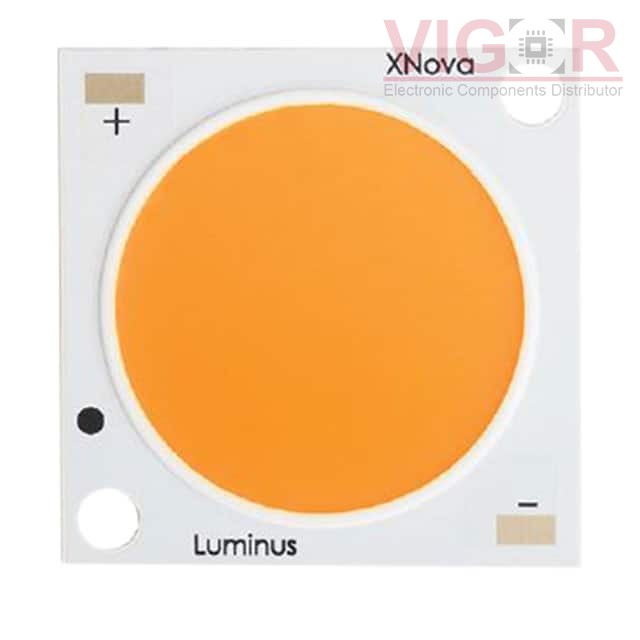

LED COB CXM22 NEU WHITE SQUARE
