Part No :

CHM-22-65-80-36-AC00-F2-3

Manufacturer
Luminus Devices
Description

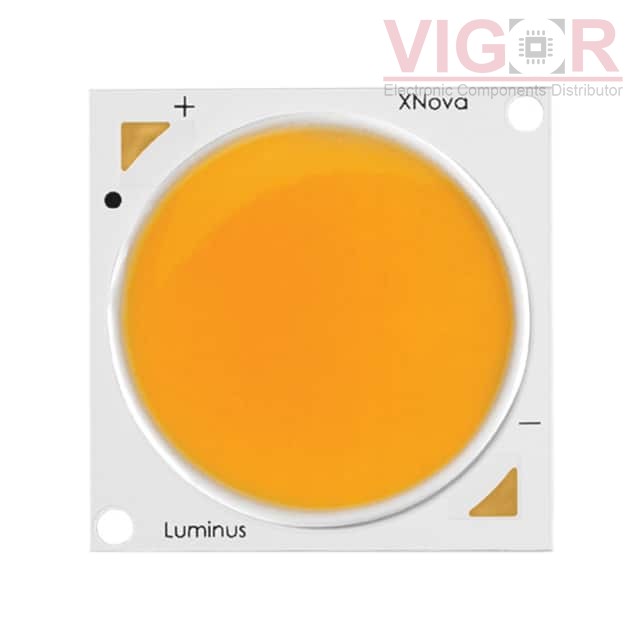

LED COB CHM22 COOL WHITE SQUARE
Catalog
LED Lighting - COBs, Engines, Modules, Strips
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CHM-22-65-80-36-AC00-F2-3 PDF
Availability
0 pieces
Unit Price
$13.94663

Current price of CHM-22-65-80-36-AC00-F2-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CHM-22-65-80-36-AC00-F2-3 Specifications
Type Description
Series:CHM-22
Package:Tray
Part Status:Not For New Designs
Type:Chip On Board (COB)
Color:White, Cool
CCT (K):6500K 3-Step MacAdam Ellipse
Wavelength:-
Configuration:Square
Luminous Flux @ Current/Temperature:8150lm (Typ)
Current - Test:1.92A
Temperature - Test:85°C
Voltage - Forward (Vf) (Typ):35V
Lumens/Watt @ Current - Test:121 lm/W
Current - Max:3.8A
CRI (Color Rendering Index):80
Viewing Angle:120°
Features:-
Size / Dimension:22.80mm L x 22.80mm W
Height:1.37mm
Light Emitting Surface (LES):22.00mm Dia
Lens Type:Flat
