Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CXM-7-35-90-18-AA00-F2-3 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | CXM-7 |
Package: | Tray |
Part Status: | Active |
Type: | Chip On Board (COB) |
Color: | White, Warm |
CCT (K): | 3500K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 580lm (Typ) |
Current - Test: | 320mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 17.5V |
Lumens/Watt @ Current - Test: | 104 lm/W |
Current - Max: | 700mA |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | 120° |
Features: | - |
Size / Dimension: | 13.00mm L x 13.00mm W |
Height: | 1.37mm |
Light Emitting Surface (LES): | 7.50mm Dia |
Lens Type: | Flat |

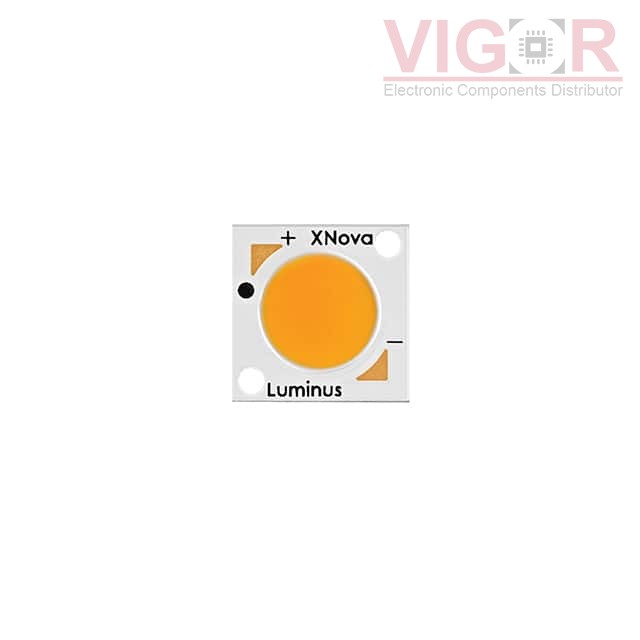

LED COB CXM7 WARM WHITE SQ
