Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CXM-27-40-90-36-AA00-F2-3 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | CXM-27 |
Package: | Tray |
Part Status: | Not For New Designs |

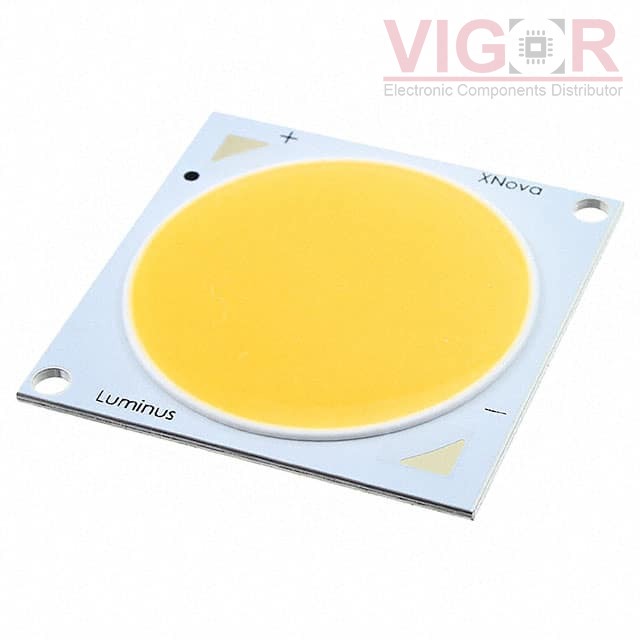

Type: | Chip On Board (COB) |
Color: | White, Neutral |
CCT (K): | 4000K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 6990lm (Typ) |
Current - Test: | 1.8A |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 35V |
Lumens/Watt @ Current - Test: | 111 lm/W |
Current - Max: | 2.7A |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | 120° |
Features: | - |
Size / Dimension: | 31.50mm L x 31.50mm W |
Height: | 1.37mm |
Light Emitting Surface (LES): | 26.50mm Dia |
Lens Type: | Flat |
