Current price of BXRC-40G10K0-L-23 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|

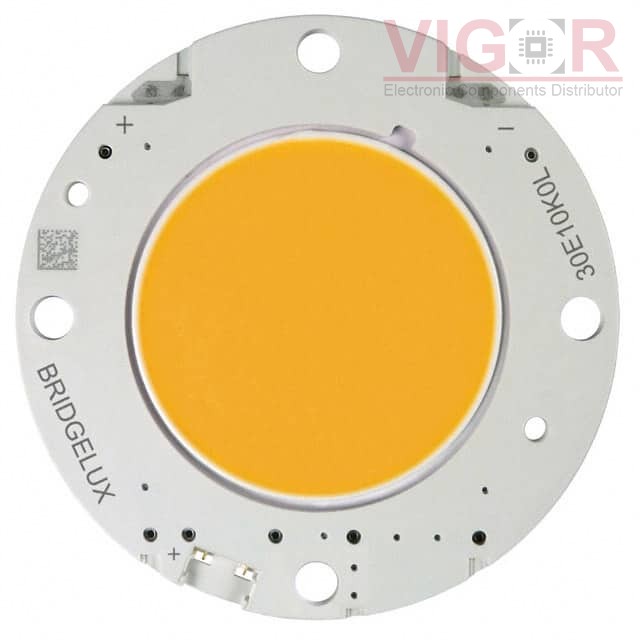

Series: | Vero® 29 Array |
Package: | Tray |
Part Status: | Active |
Type: | Chip On Board (COB) |
Color: | White, Neutral |
CCT (K): | 4000K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Round |
Luminous Flux @ Current/Temperature: | 8285lm (Typ) |
Current - Test: | 2.1A |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 36.8V |
Lumens/Watt @ Current - Test: | 107 lm/W |
Current - Max: | 4.2A |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | 120° |
Features: | With Connector |
Size / Dimension: | 49.20mm Dia |
Height: | 1.90mm |
Light Emitting Surface (LES): | 29.20mm Dia |
Lens Type: | Flat |
