Type | Description |
---|---|

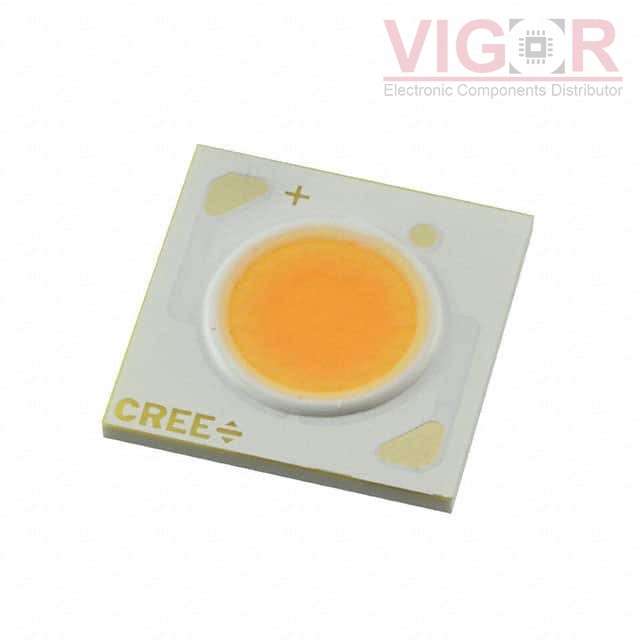

Series: | Xlamp® CXB1507 |
Package: | Tray |
Part Status: | Active |
Type: | Chip On Board (COB) |
Color: | White, Cool |
CCT (K): | 6500K 5-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 1005lm (970lm ~ 1040lm) |
Current - Test: | 400mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 18V |
Lumens/Watt @ Current - Test: | 140 lm/W |
Current - Max: | 750mA |
CRI (Color Rendering Index): | 80 |
Viewing Angle: | 115° |
Features: | - |
Size / Dimension: | 15.85mm L x 15.85mm W |
Height: | 1.70mm |
Light Emitting Surface (LES): | 8.90mm Dia |
Lens Type: | Flat |
