Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of L218-4090024C30000 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|

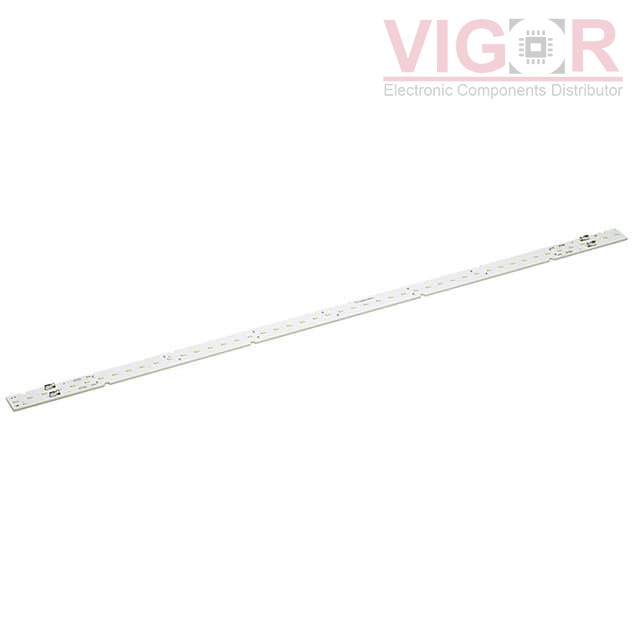

Series: | LUXEON XR-3020 |
Package: | Tray |
Part Status: | Active |
Type: | LED Module |
Color: | White, Neutral |
CCT (K): | 4000K |
Wavelength: | - |
Configuration: | Linear Light Strip |
Luminous Flux @ Current/Temperature: | 890lm (Typ) |
Current - Test: | 200mA |
Temperature - Test: | 45°C |
Voltage - Forward (Vf) (Typ): | 34.8V |
Lumens/Watt @ Current - Test: | 128 lm/W |
Current - Max: | 480mA |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | - |
Features: | With Connector |
Size / Dimension: | 279.20mm L x 20.00mm W |
Height: | 3.00mm |
Light Emitting Surface (LES): | - |
Lens Type: | Flat |
