Type | Description |
---|---|
Series: | CHM-6 |
Package: | Tray |
Part Status: | Not For New Designs |
Type: | Chip On Board (COB) |
Color: | White, Warm |
CCT (K): | 3000K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Rectangle |
Luminous Flux @ Current/Temperature: | 615lm (Typ) |
Current - Test: | 640mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 9V |
Lumens/Watt @ Current - Test: | 107 lm/W |
Current - Max: | 1.28A |
CRI (Color Rendering Index): | 80 |
Viewing Angle: | 120° |
Features: | - |
Size / Dimension: | 12.00mm L x 13.00mm W |
Height: | 1.37mm |
Light Emitting Surface (LES): | 6.30mm Dia |
Lens Type: | Flat |

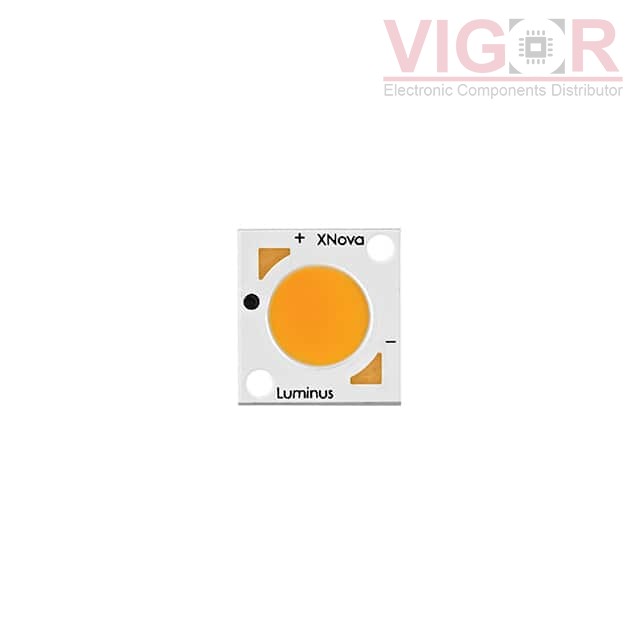

LED COB CHM6 WARM WHITE RECT
